دیتاشیت PTH08T210WAS
مشخصات دیتاشیت
| نام دیتاشیت | PTH08T210W Series |
|---|---|
| حجم فایل | 1247.91 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 35 |
دانلود دیتاشیت PTH08T210W Series |

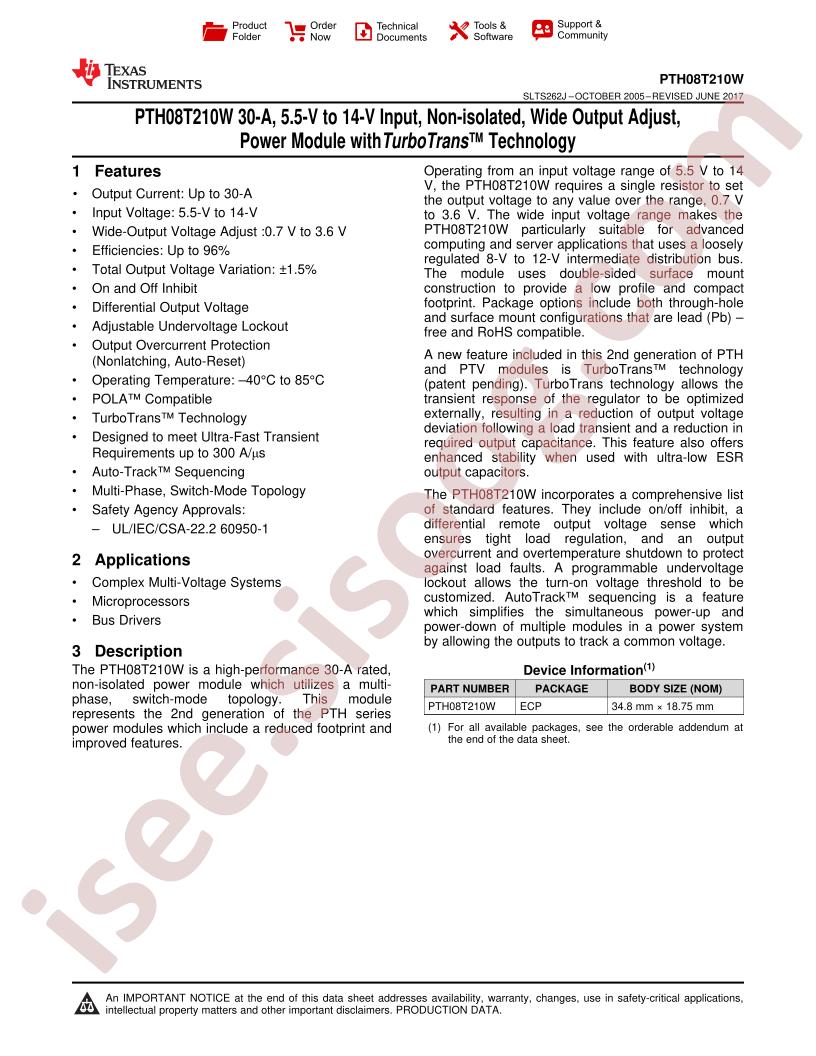

PTH08T210W Series Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Power Modules
- Datasheet: Texas Instruments PTH08T210WAS
- Output Channel: 1
- Output Voltage: 0.7V~3.6V
- Input Voltage(DC): 5.5V~14V
- Output Current (Max): 25A
- Conversion Efficiency: 93%
- Package: SMD-14P
- Manufacturer: Texas Instruments
- Voltage - Input (Max): 14V
- Base Part Number: PTH08
- Voltage - Output 2: -
- Operating Temperature: -40°C ~ 85°C
- Package / Case: 14-SMD Module
- Series: PTH08T210W
- Applications: ITE (Commercial)
- Mounting Type: Surface Mount
- Number of Outputs: 1
- Efficiency: 93%
- Current - Output (Max): 25A
- Voltage - Output 3: -
- Features: Remote On/Off, OCP, OTP, UVLO
- Packaging: Tray
- Size / Dimension: 1.37" L x 0.62" W x 0.37" H (34.8mm x 15.8mm x 9.4mm)
- Voltage - Output 1: 0.7 ~ 3.6V
- Type: Non-Isolated PoL Module
- Voltage - Input (Min): 5.5V
- Part Status: Active
- detail: Non-Isolated PoL Module DC DC Converter 1 Output 0.7 ~ 3.6V 25A 5.5V - 14V Input
