CSD18511KTTT دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت CSD18511KTTT	دانلود دیتاشیت

RoHS: true
Category: Triode/MOS Tube/Transistor/MOSFETs

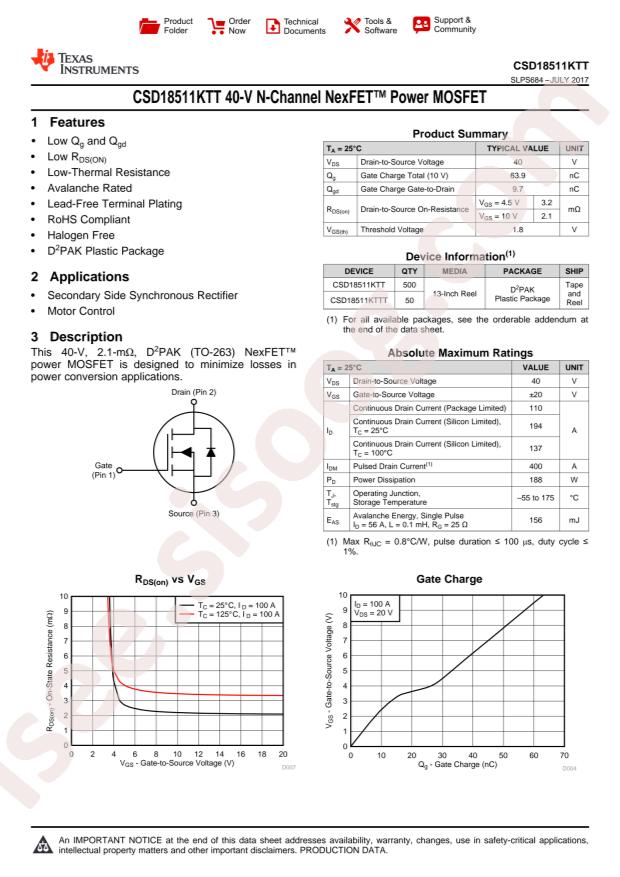

Datasheet: Texas Instruments CSD18511KTTT
Operating Temperature: -55°C~+175°C@(Tj)
Power Dissipation (Pd): 188W
Total Gate Charge (Qg@Vgs): 64nC@10V
Drain Source Voltage (Vdss): 40V
Input Capacitance (Ciss@Vds): 5940pF@20V
Continuous Drain Current (Id): 110A;194A
Gate Threshold Voltage (Vgs(th)@Id): 2.4V@250uA
Drain Source On Resistance (RDS(on)@Vgs,Id): 2.6mΩ@100A,10V
Package: TO-263-3
Manufacturer: Texas Instruments
Power Dissipation (Max): 188W (Ta)
Base Part Number: CSD1851
Gate Charge (Qg) (Max) @ Vgs: 64nC @ 10V
FET Feature: -
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Series: NexFET™
Current - Continuous Drain (Id) @ 25°C: 110A (Ta), 194A (Tc)
Supplier Device Package: DDPAK/TO-263-3
Vgs (Max): ±20V
Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Drain to Source Voltage (Vdss): 40V
Rds On (Max) @ Id, Vgs: 2.6mOhm @ 100A, 10V
Input Capacitance (Ciss) (Max) @ Vds: 5940pF @ 20V
Packaging: Cut Tape (CT)
Vgs(th) (Max) @ Id: 2.4V @ 250µA
Mounting Type: Surface Mount
Technology: MOSFET (Metal Oxide)
Part Status: Active
FET Type: N-Channel
detail: N-Channel 40V 110A (Ta), 194A (Tc) 188W (Ta) Surface Mount DDPAK/TO-263-3
