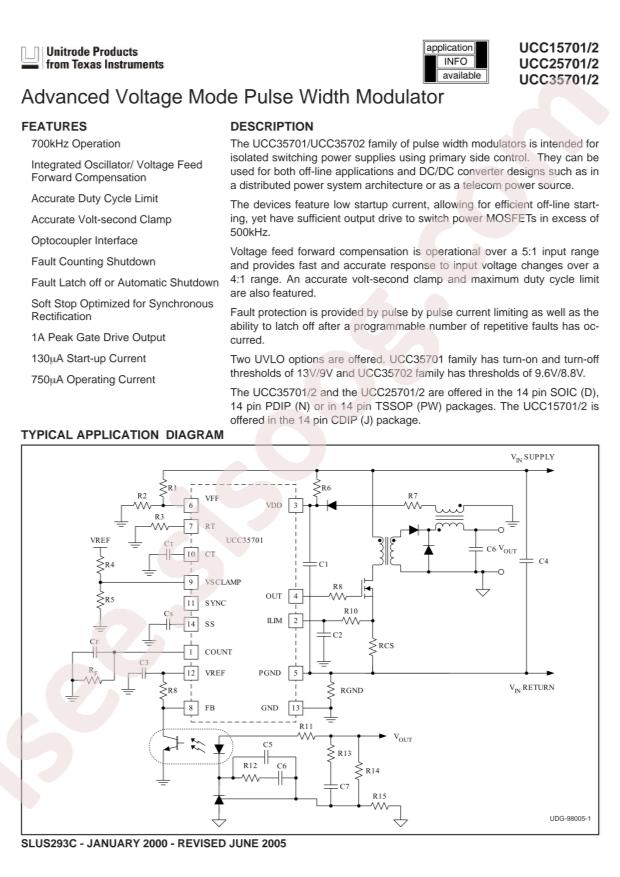

UCC25701N دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | UCC25701N |
|---|---|
| حجم فایل | 88.478 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 21 |
دانلود دیتاشیت UCC25701N |
دانلود دیتاشیت |
|---|
سایر مستندات
UCC1570x, 2570x, 3570x Series 20 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/AC-DC Controllers & Regulators
- Topology: Boost;Flyback;Forward
- Datasheet: Texas Instruments UCC25701N
- Duty Cycle: 99%
- Supply Voltage: 9V~15V
- Switching Frequency: 700kHz
- Operating Temperature: -55°C~+150°C@(TJ)
- Package: PDIP-14
- Manufacturer: Texas Instruments
- Base Part Number: UCC257
- Mounting Type: Through Hole
- Series: -
- Internal Switch(s): No
- Supplier Device Package: 14-PDIP
- Voltage - Breakdown: -
- Voltage - Start Up: 13V
- Output Isolation: Isolated
- Packaging: Tube
- Package / Case: 14-DIP (0.300", 7.62mm)
- Control Features: Soft Start, Sync
- Voltage - Supply (Vcc/Vdd): 9V ~ 15V
- Frequency - Switching: 700kHz
- Part Status: Active
- Fault Protection: Current Limiting
- detail: Converter Offline Boost, Flyback, Forward Topology 700kHz 14-PDIP
