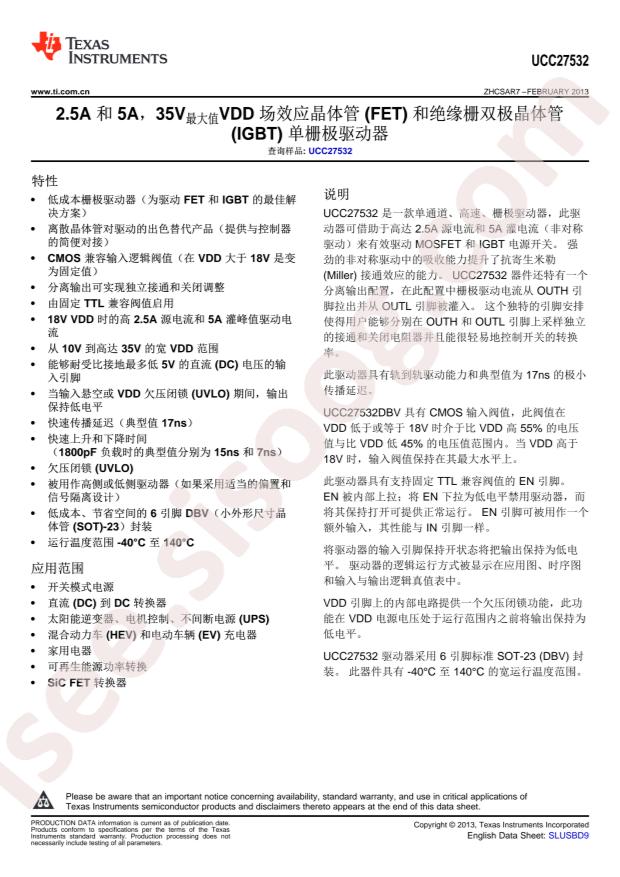

UCC27532DBVT Datasheet
Datasheet specifications
|
Datasheet's name
|
UCC27532DBVT
|
|
File size
|
98.751
KB
|
|
File type
|
pdf
|
|
Number of pages
|
27
|
Technical specifications
-
RoHS:
true
-
Category:
Power Supply Chip/Gate Drive ICs
-
Datasheet:
Texas Instruments UCC27532DBVT
-
Fall Time:
7ns
-
Load Type:
IGBT;MOSFET
-
Rise Time:
15ns
-
Supply Voltage:
10V~32V
-
Number of Drivers:
1
-
Driven Configuration:
Low Side
-
Operating Temperature:
-40°C~+140°C@(Tj)
-
Peak Output Current(sink):
5A
-
Peak Output Current(source):
2.5A
-

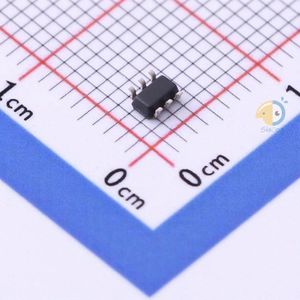

Package:
SOT-23-6
-
Manufacturer:
Texas Instruments
-
Voltage - Supply:
10V ~ 32V
-
Current - Peak Output (Source, Sink):
2.5A, 5A
-
Input Type:
Non-Inverting
-
Rise / Fall Time (Typ):
15ns, 7ns
-
Series:
-
-
Base Part Number:
UCC275
-
Supplier Device Package:
SOT-23-6
-
Channel Type:
Single
-
Mounting Type:
Surface Mount
-
Gate Type:
IGBT, N-Channel MOSFET
-
Logic Voltage - VIL, VIH:
1.2V, 1.7V
-
Package / Case:
SOT-23-6
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
detail:
Low-Side Gate Driver IC Non-Inverting SOT-23-6
