CY74FCT823ATSOC دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
CY74FCT823ATSOC
|
|
حجم فایل
|
88.751
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
14
|
مشخصات فنی
-
RoHS:
true
-
Type:
D-Type
-
Series:
74FCT
-
Category:
Logic ICs/Flip Flops
-
Function:
Reset
-
Datasheet:

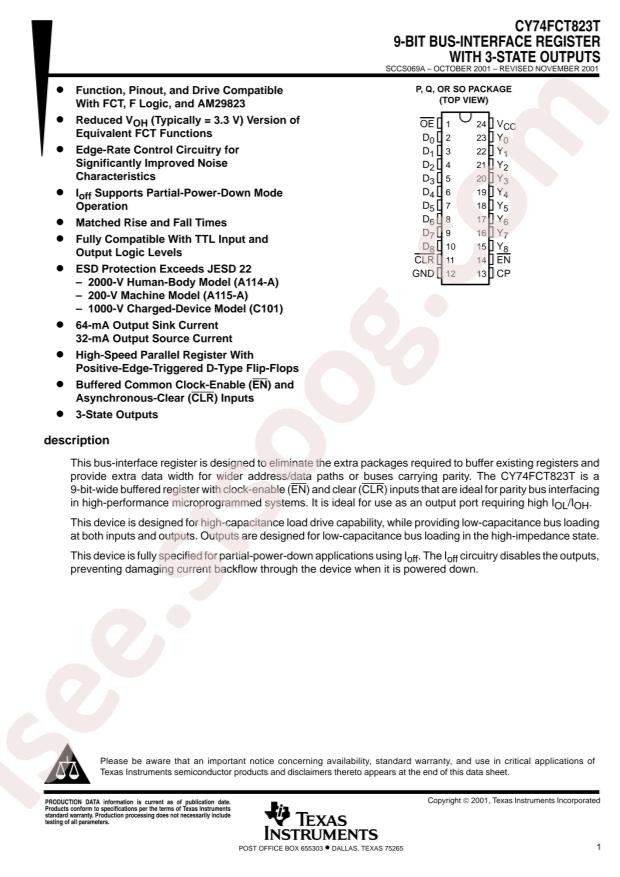

Texas Instruments CY74FCT823ATSOC
-
Output Type:
Tri-State;Non-Inverted
-
Sink Current:
64mA
-
Trigger Type:
上升沿
-
Source Current:
32mA
-
Supply Voltage:
4.75V~5.25V
-
Clock Frequency:
-
-
Input Capacitance:
5pF
-
Number of Channels:
9
-
Operating Temperature:
-40°C~+85°C
-
Quiescent Current (Iq):
200uA
-
Maximum Propagation Delay:
20ns@5V,300pF
-
Package:
SOIC-24-300mil
-
Manufacturer:
Texas Instruments
-
Max Propagation Delay @ V, Max CL:
20ns @ 5V, 300pF
-
Number of Elements:
1
-
Package / Case:
24-SOIC (0.295", 7.50mm Width)
-
Current - Quiescent (Iq):
200µA
-
Base Part Number:
74FCT823
-
Supplier Device Package:
20-SOIC
-
Number of Bits per Element:
9
-
Packaging:
Tube
-
Current - Output High, Low:
32mA, 64mA
-
Mounting Type:
Surface Mount
-
Voltage - Supply:
4.75V ~ 5.25V
-
Part Status:
Active
-
detail:
Flip Flop 1 Element D-Type 9 Bit Positive Edge 24-SOIC (0.295", 7.50mm Width)
