دیتاشیت TPS61281YFFT
مشخصات دیتاشیت
| نام دیتاشیت |

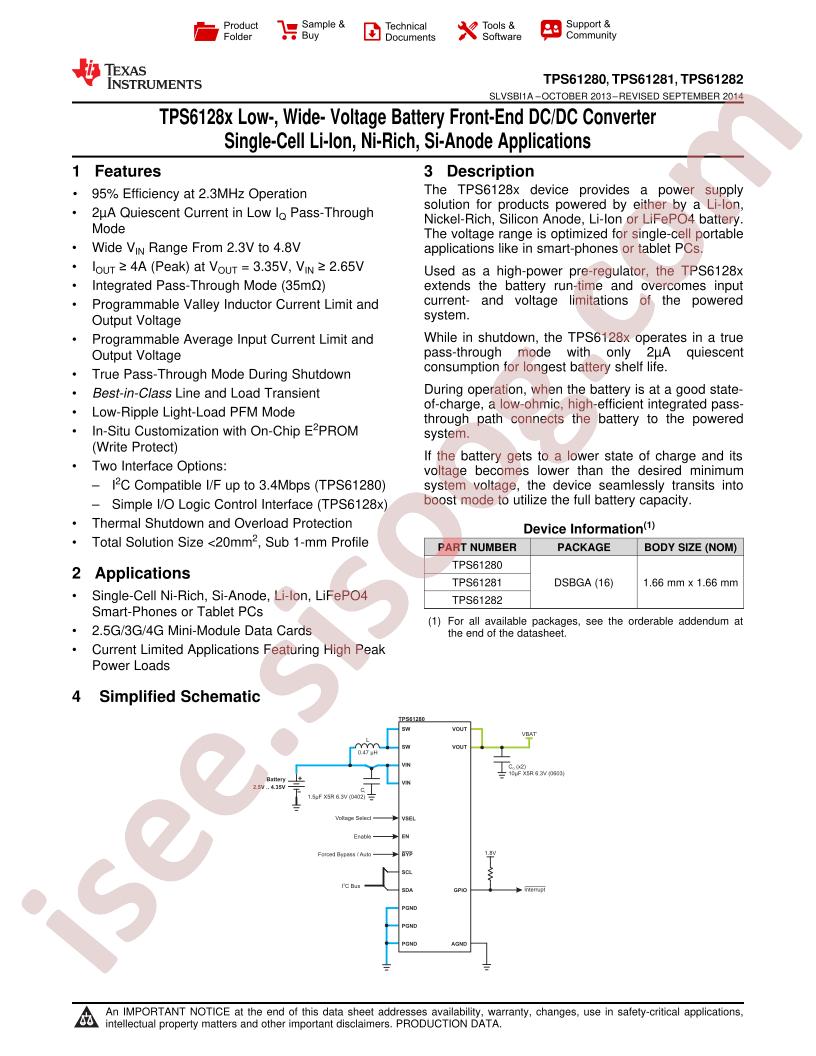

TPS61280-61282
|
| حجم فایل |
2453.522
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
57
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
boost converterType
-
Topology:
Boost
-
Datasheet:
Texas Instruments TPS61281YFFT
-
Input Voltage:
2.3V~4.85V
-
Output Voltage:
2.85V~4.4V
-
Number of Outputs:
1
-
Switching Frequency:
2.3MHz
-
Output Current (Max):
3A
-
Operating Temperature:
-40°C~+85°C@(TA)
-
Synchronous Rectification:
Yes
-
Package:
BGA-16
-
Manufacturer:
Texas Instruments
-
Voltage - Input (Max):
4.85V
-
Frequency - Switching:
2.3MHz
-
Packaging:
Cut Tape (CT)
-
Series:
-
-
Output Configuration:
Positive
-
Base Part Number:
TPS612
-
Supplier Device Package:
16-DSBGA (1.67x1.67)
-
Mounting Type:
Surface Mount
-
Voltage - Output (Max):
4.4V
-
Synchronous Rectifier:
Yes
-
Output Type:
Programmable
-
Package / Case:
16-UFBGA, DSBGA
-
Voltage - Output (Min/Fixed):
2.85V
-
Voltage - Input (Min):
2.3V
-
Part Status:
Active
-
Current - Output:
3A (Switch)
-
detail:
Boost Switching Regulator IC Positive Programmable 2.85V 1 Output 3A (Switch) 16-UFBGA, DSBGA
