SM74101SD/NOPB دیتاشیت

SM74101SD/NOPB

مشخصات دیتاشیت

نام دیتاشیت SM74101SD/NOPB
حجم فایل 81.858 کیلوبایت
نوع فایل pdf
تعداد صفحات 23

مشاهده دیتاشیت SM74101SD/NOPB

دانلود دیتاشیت

سایر مستندات

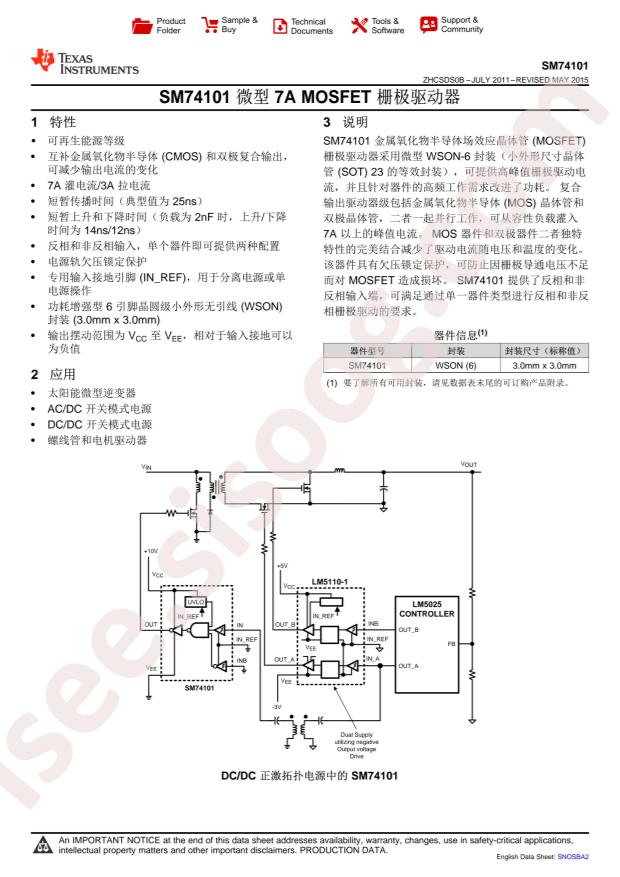

SM74101 Datasheet 23 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Texas Instruments SM74101SD/NOPB
  • Fall Time: 12ns
  • Load Type: MOSFET
  • Rise Time: 14ns
  • Supply Voltage: 3.5V~14V
  • Number of Drivers: 1
  • Driven Configuration: Low Side
  • Operating Temperature: -40°C~+125°C@(Tj)
  • Peak Output Current(sink): 7A
  • Peak Output Current(source): 3A
  • Package: DFN-6(3x3)
  • Manufacturer: Texas Instruments
  • Voltage - Supply: 3.5V ~ 14V
  • Current - Peak Output (Source, Sink): 3A, 7A
  • Input Type: Inverting, Non-Inverting
  • Rise / Fall Time (Typ): 14ns, 12ns
  • Series: -
  • Base Part Number: SM741
  • Supplier Device Package: 6-WSON (3x3)
  • Channel Type: Single
  • Mounting Type: Surface Mount
  • Gate Type: N-Channel, P-Channel MOSFET
  • Logic Voltage - VIL, VIH: 0.8V, 2.3V
  • Package / Case: 6-WDFN Exposed Pad
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • detail: Low-Side Gate Driver IC Inverting, Non-Inverting 6-WSON (3x3)
