ADS8586SIPM دیتاشیت

ADS8586SIPM

مشخصات دیتاشیت

نام دیتاشیت ADS8586SIPM
حجم فایل 78.874 کیلوبایت
نوع فایل pdf
تعداد صفحات 63

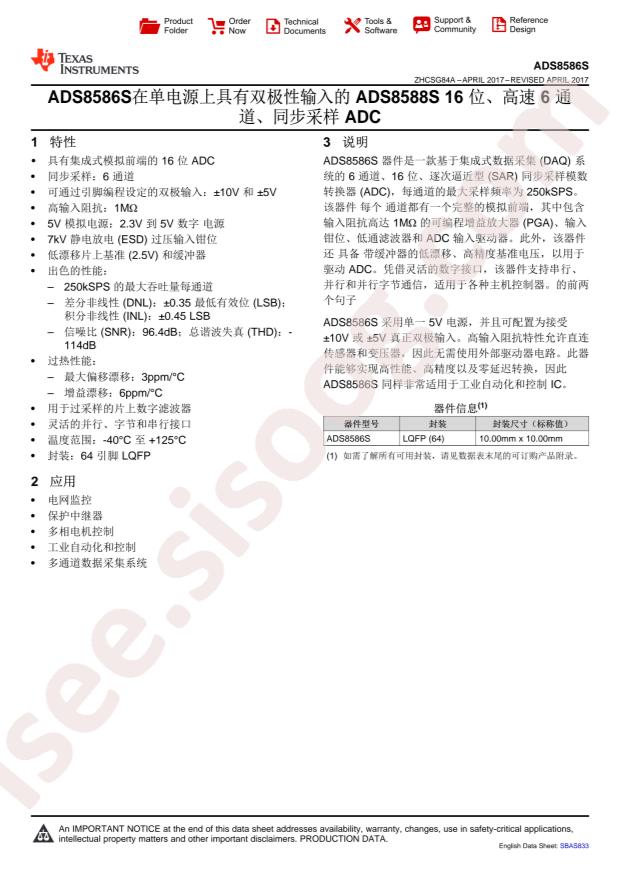

مشاهده دیتاشیت ADS8586SIPM

دانلود دیتاشیت

سایر مستندات

ADS8586S Datasheet 61 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Texas Instruments ADS8586SIPM
  • Interface: Parallel;serial
  • resolution: 16Bit
  • Supply Voltage: 4.75V~5.25V
  • number of channels: 6
  • sampling frequency: 250kHz
  • Operating Temperature: -40°C~+125°C
  • Package: LQFP-64(10x10)
  • Manufacturer: Texas Instruments
  • Input Type: Single Ended
  • Packaging: Tray
  • Series: -
  • Number of A/D Converters: 6
  • Number of Inputs: 6
  • Features: Simultaneous Sampling
  • Ratio - S/H:ADC: 0:1
  • Supplier Device Package: 64-LQFP (10x10)
  • Data Interface: Parallel, Serial
  • Package / Case: 64-LQFP
  • Sampling Rate (Per Second): 250k
  • Configuration: PGA-ADC
  • Part Status: Active
  • Base Part Number: ADS8586
  • Architecture: SAR
  • Reference Type: External, Internal
  • Mounting Type: Surface Mount
  • Number of Bits: 16
  • Voltage - Supply, Analog: 4.75V ~ 5.25V
  • Voltage - Supply, Digital: 2.3V ~ 5.25V
  • detail: 16 Bit Analog to Digital Converter 6 Input 6 SAR 64-LQFP (10x10)
