LM3678SDE-1.2/NOPB دیتاشیت

مشخصات دیتاشیت

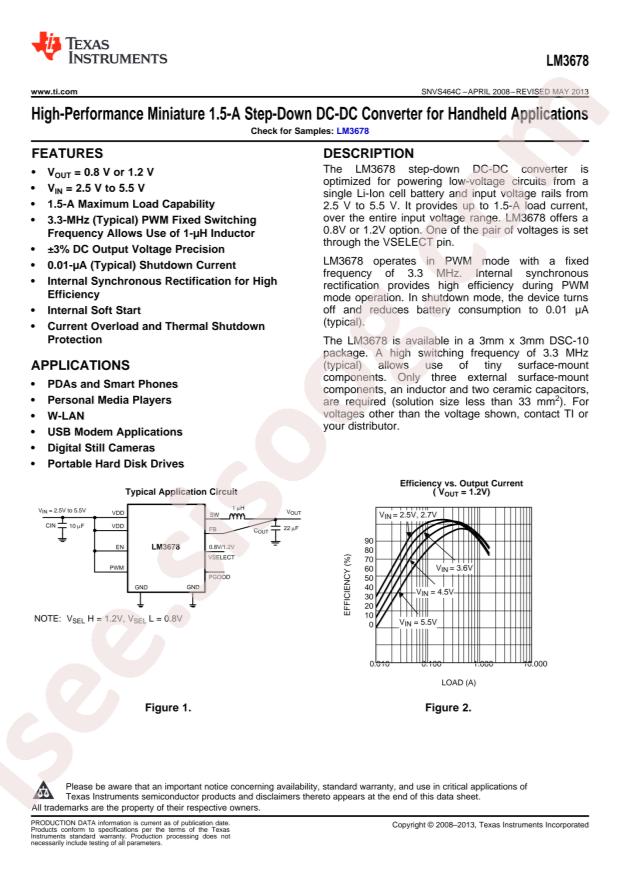

مشاهده دیتاشیت LM3678SDE-1.2/NOPB	دانلود دیتاشیت

LM3678 19 pages

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Datasheet: Texas Instruments LM3678SDE-1.2/NOPB
Output Type: Adjustable
Input Voltage: 2.5V~5.5V
Output Voltage: 0.8V;1.2V
Number of Outputs: 1
Switching Frequency: 3.3MHz
Output Current (Max): 1.5A
Operating Temperature: -30°C~+85°C@(TA)
Synchronous Rectification: Yes
Package: WSON-10(3x3)
Manufacturer: Texas Instruments
Voltage - Input (Max): 5.5V
Frequency - Switching: 3.3MHz
Packaging: Cut Tape (CT)
Series: -
Output Configuration: Positive
Base Part Number: LM3678
Supplier Device Package: 10-WSON (3x3)
Mounting Type: Surface Mount
Voltage - Output (Max): -
Synchronous Rectifier: Yes
Package / Case: 10-WFDFN Exposed Pad
Voltage - Output (Min/Fixed): 0.8V, 1.2V
Voltage - Input (Min): 2.5V
Part Status: Active
Current - Output: 1.5A
detail: Buck Switching Regulator IC Positive Programmable 0.8V, 1.2V 1 Output 1.5A 10-WFDFN Exposed Pad
