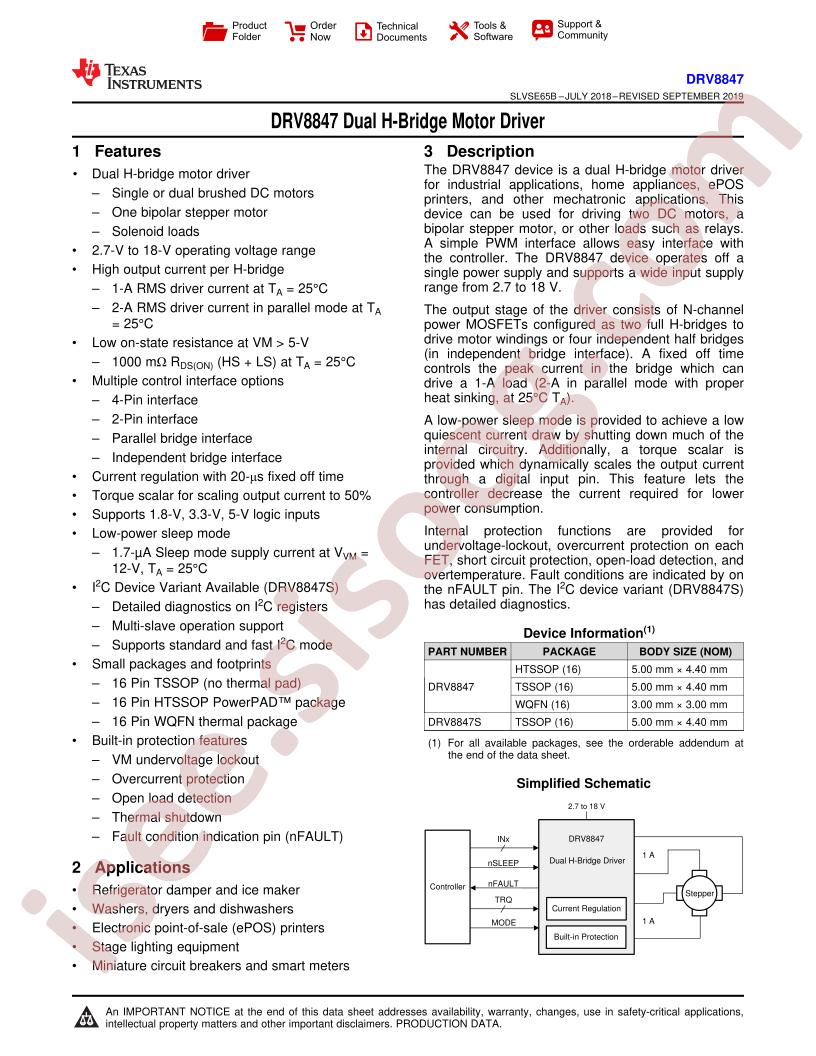

DRV8847 دیتاشیت

DRV8847

مشخصات دیتاشیت

نام دیتاشیت DRV8847
حجم فایل 3337.913 کیلوبایت
نوع فایل pdf
تعداد صفحات 79

دانلود دیتاشیت DRV8847

دانلود دیتاشیت

سایر مستندات

DRV8847PWPR 80 pages

مشخصات فنی

  • RoHS: true
  • Type: Brush DC Motor
  • Category: Power Supply Chip/Motor Driver ICs
  • Datasheet: Texas Instruments DRV8847RTET
  • Interface: PWM
  • Output Current: 2A
  • Supply Voltage: 0V~5V
  • Operating Temperature: -40°C~+125°C@(Ta)
  • Package: QFN-16-EP(3x3)
  • Manufacturer: Texas Instruments
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Voltage - Supply: 0V ~ 5V
  • Output Configuration: Half Bridge (4)
  • Motor Type - Stepper: Bipolar
  • Applications: General Purpose
  • Voltage - Load: 2.7V ~ 18V
  • Base Part Number: DRV8847
  • Step Resolution: -
  • Mounting Type: Surface Mount
  • Motor Type - AC, DC: Brushed DC
  • Series: -
  • Supplier Device Package: 16-WQFN (3x3)
  • Package / Case: 16-WFQFN Exposed Pad
  • Packaging: Cut Tape (CT)
  • Technology: Power MOSFET
  • Part Status: Active
  • Current - Output: 2A
  • detail: Bipolar Motor Driver Power MOSFET PWM 16-WQFN (3x3)
