SM72238TDE-3.3/NOPB دیتاشیت

SM72238TDE-3.3/NOPB

مشخصات دیتاشیت

نام دیتاشیت SM72238TDE-3.3/NOPB
حجم فایل 74.085 کیلوبایت
نوع فایل pdf
تعداد صفحات 20

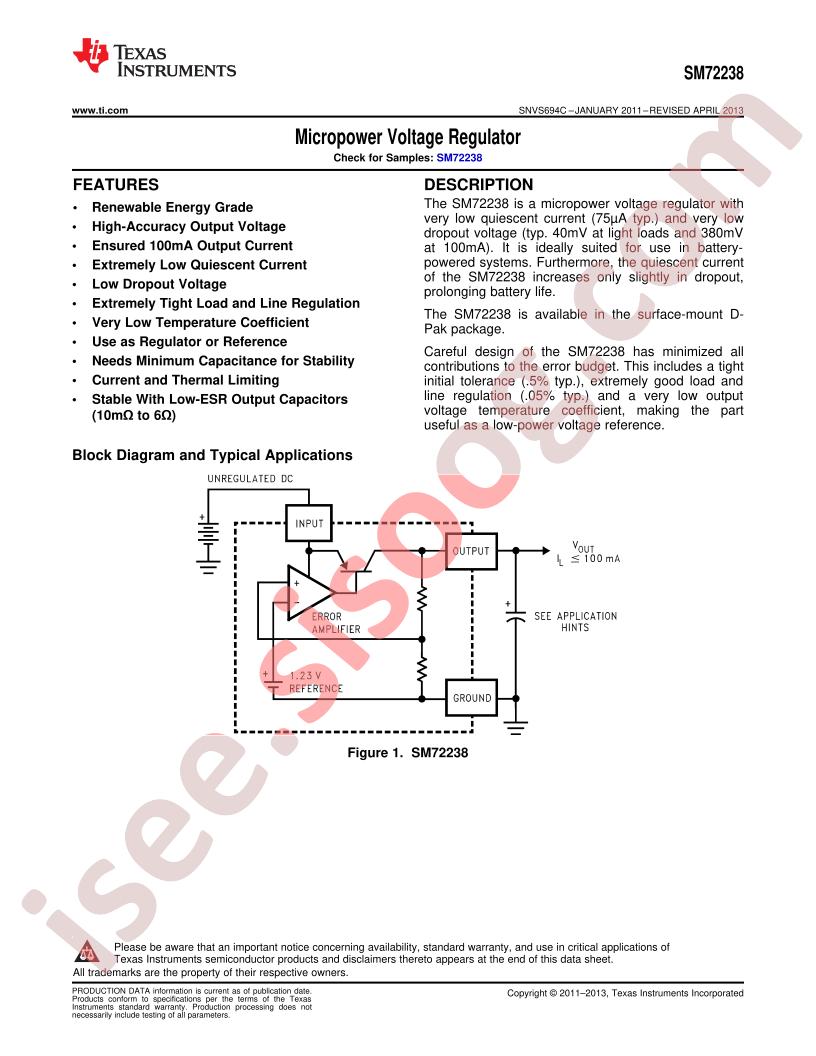

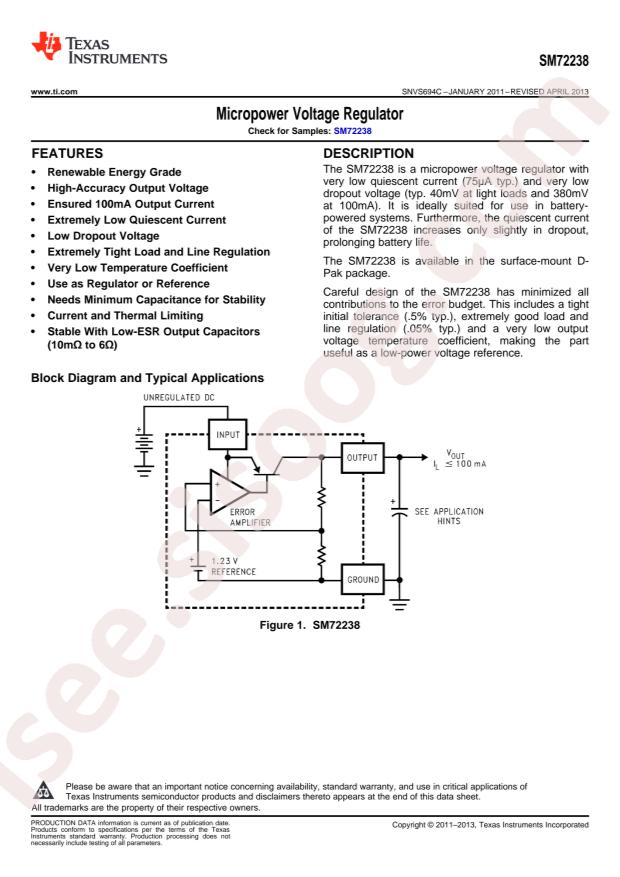

مشاهده دیتاشیت SM72238TDE-3.3/NOPB

دانلود دیتاشیت

سایر مستندات

SM72238 19 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Texas Instruments SM72238TDE-3.3/NOPB
  • Output Current: 100mA
  • Output Voltage: 3.3V
  • Dropout Voltage: 0.6V@(100mA)
  • Output Polarity: positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 35V
  • Operating Temperature: -40°C~+125°C
  • Quiescent Current (Ground Current): 140uA
  • Package: TO-252-3
  • Manufacturer: Texas Instruments
  • Voltage - Input (Max): 30V
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): 0.6V @ 100mA
  • Series: SolarMagic™
  • Output Configuration: Positive
  • Current - Quiescent (Iq): 140µA
  • Base Part Number: SM722
  • Current - Supply (Max): 14mA
  • Supplier Device Package: TO-252-3
  • Mounting Type: Surface Mount
  • Voltage - Output (Min/Fixed): 3.3V
  • Number of Regulators: 1
  • PSRR: -
  • Output Type: Fixed
  • Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
  • Protection Features: Over Current, Over Temperature
  • Control Features: -
  • Part Status: Active
  • Current - Output: 100mA
  • detail: Linear Voltage Regulator IC 1 Output 100mA TO-252-3
