دیتاشیت LM340T-5.0/LF01
مشخصات دیتاشیت
| نام دیتاشیت | LM340(A), LM78xx Datasheet |
|---|---|
| حجم فایل | 3846.762 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 34 |

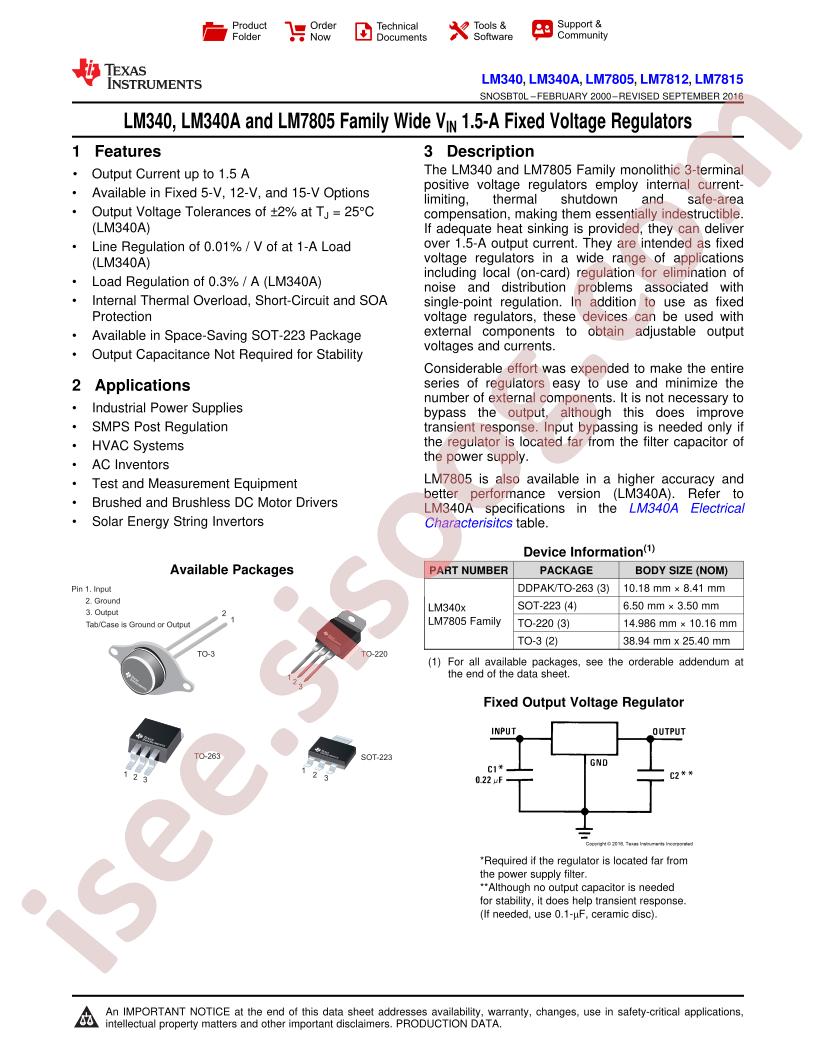

دانلود دیتاشیت LM340(A), LM78xx Datasheet |
LM340(A), LM78xx Datasheet Datasheet |
|---|
مشخصات
- Voltage - Input (Max): 35V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 2V @ 1A
- Operating Temperature: 0°C ~ 125°C
- Output Configuration: Positive
- Series: -
- Current - Quiescent (Iq): 8mA
- Manufacturer: Texas Instruments
- Base Part Number: LM340

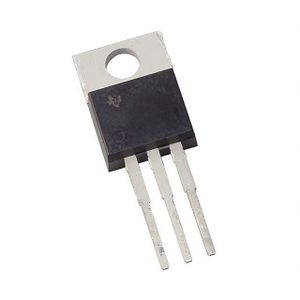

- Supplier Device Package: TO-220-3, LF01
- Mounting Type: Surface Mount
- Voltage - Output (Min/Fixed): 5V
- Number of Regulators: 1
- PSRR: 80dB (120Hz)
- Output Type: Fixed

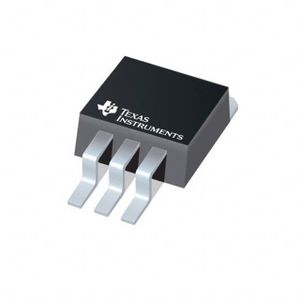

- Package / Case: TO-263-4, D²Pak (3 Leads + Tab), Variant
- Packaging: Tube
- Protection Features: Over Temperature, Short Circuit
- Control Features: -
- Part Status: Active
- Current - Output: 1.5A
- detail: Linear Voltage Regulator IC 1 Output 1.5A TO-220-3, LF01
