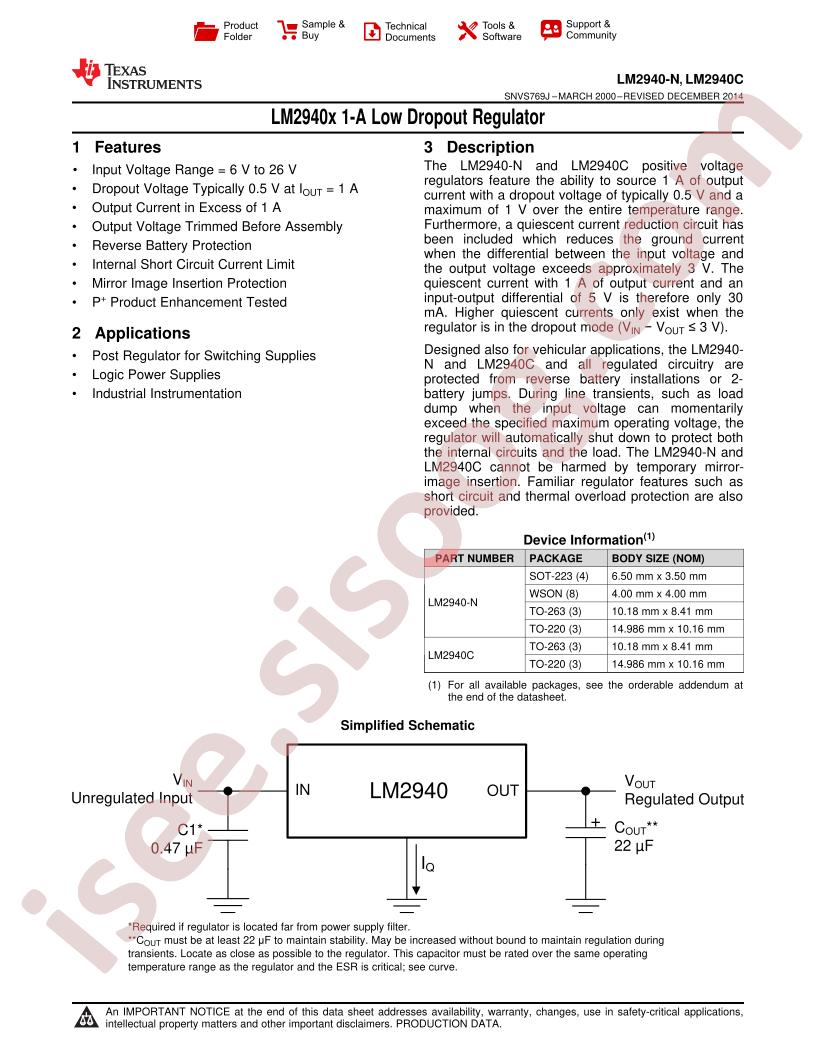

LM2940-N, 2940C Datasheet 数据手册

LM2940-N, 2940C Datasheet

数据手册规格

数据手册名称 LM2940-N, 2940C Datasheet
文件大小 2420.282 千字节
文件类型 pdf
页数 37

下载数据手册 LM2940-N, 2940C Datasheet

下载数据手册

其他文档

LM2940LD-5.0/NOPB 43 pages

TO-220 Leadbend Options 10 pages

LM2940(C) 37 pages

技术规格

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Texas Instruments LM2940CT-5.0/LF01
  • Output Current: 1A
  • Output Voltage: 5V
  • Dropout Voltage: 1V@(1A)
  • Output Polarity: positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 26V
  • Operating Temperature: 0°C~+125°C
  • Quiescent Current (Ground Current): 15mA
  • Power Supply Rejection Ratio (PSRR): 72dB@(120Hz)
  • Package: TO-220
  • Manufacturer: Texas Instruments
  • Voltage - Input (Max): 26V
  • Packaging: Tube
  • Series: -
  • Current - Quiescent (Iq): 15mA
  • Current - Supply (Max): 60mA
  • Voltage - Output (Min/Fixed): 5V
  • Number of Regulators: 1
  • PSRR: 72dB (120Hz)
  • Supplier Device Package: TO-220-3, LF01
  • Package / Case: TO-263-4, D²Pak (3 Leads + Tab), Variant
  • Control Features: -
  • Part Status: Active
  • Base Part Number: LM2940
  • Voltage Dropout (Max): 1V @ 1A
  • Current - Output: 1A
  • Output Configuration: Positive
  • Mounting Type: Surface Mount
  • Voltage - Output (Max): -
  • Output Type: Fixed
  • Protection Features: Over Temperature, Reverse Polarity, Short Circuit
  • detail: Linear Voltage Regulator IC 1 Output 1A TO-220-3, LF01
