دیتاشیت LM317LZ/LFT1
مشخصات دیتاشیت
| نام دیتاشیت | LM317L Datasheet |
|---|---|
| حجم فایل | 1753.029 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 33 |
دانلود دیتاشیت LM317L Datasheet |
LM317L Datasheet Datasheet |
|---|
مشخصات
- Voltage - Input (Max): 40V
- Voltage - Output (Max): 37V
- Voltage Dropout (Max): -
- Operating Temperature: -40°C ~ 125°C
- Output Configuration: Positive
- Series: -
- Manufacturer: Texas Instruments
- Base Part Number: LM317

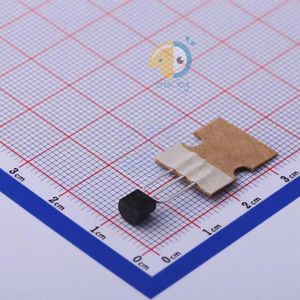

- Supplier Device Package: TO-92-3
- Mounting Type: Through Hole
- Voltage - Output (Min/Fixed): 1.2V
- Number of Regulators: 1
- PSRR: 80dB ~ 65dB (120Hz)
- Output Type: Adjustable
- Package / Case: TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
- Packaging: Cut Tape (CT)
- Protection Features: Over Current, Over Temperature, Short Circuit
- Control Features: -
- Part Status: Active
- Current - Output: 100mA
- detail: Linear Voltage Regulator IC 1 Output 100mA TO-92-3
