CY74FCT825ATSOC دیتاشیت

مشخصات دیتاشیت

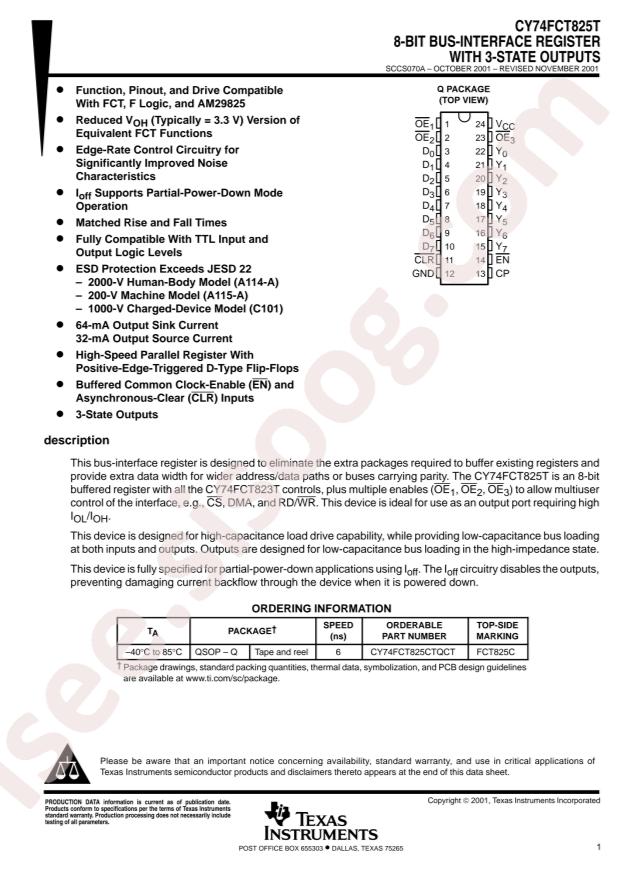

مشاهده دیتاشیت CY74FCT825ATSOC	دانلود دیتاشیت

RoHS: true
Type: D-Type
Series: 74FCT
Category: Logic ICs/Flip Flops
Function: Reset
Datasheet: Texas Instruments CY74FCT825ATSOC
Output Type: Tri-State;Non-Inverted
Sink Current: 64mA
Trigger Type: 上升沿
Source Current: 32mA
Supply Voltage: 4.75V~5.25V
Clock Frequency: -
Input Capacitance: 5pF
Number of Elements: 1
Operating Temperature: -40°C~+85°C
Quiescent Current (Iq): 200uA
Maximum Propagation Delay: 20ns@300pF
Number of Bits per Element: 8
Package: SOP-24-300mil
Manufacturer: Texas Instruments
Max Propagation Delay @ V, Max CL: 20ns @ 300pF
Package / Case: 24-SOIC (0.295", 7.50mm Width)
Current - Quiescent (Iq): 200µA
Base Part Number: 74FCT825
Supplier Device Package: 20-SOIC
Packaging: Tube
Current - Output High, Low: 32mA, 64mA
Mounting Type: Surface Mount
Voltage - Supply: 4.75V ~ 5.25V
Part Status: Active
detail: Flip Flop 1 Element D-Type 8 Bit Positive Edge 24-SOIC (0.295", 7.50mm Width)
