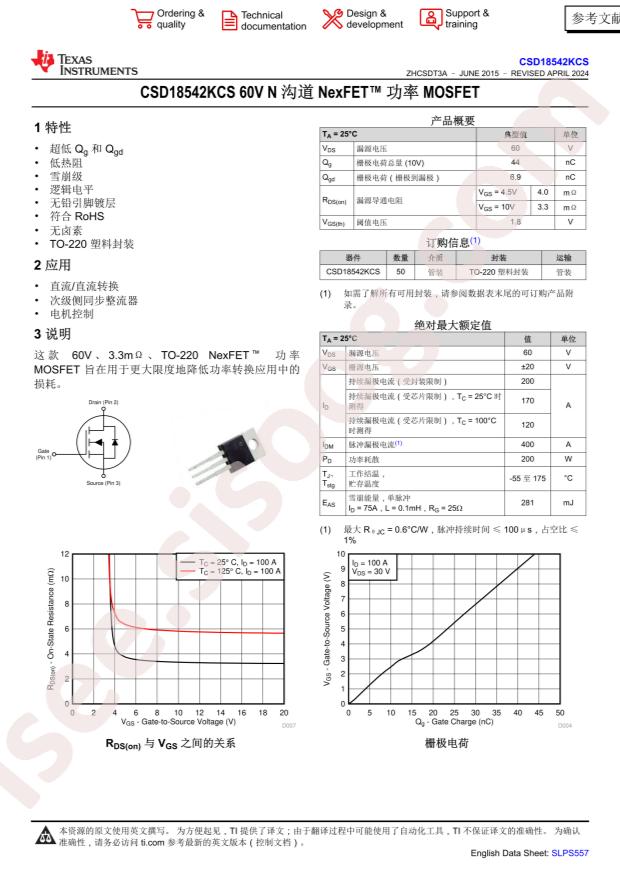

CSD18542KCS دیتاشیت

CSD18542KCS

مشخصات دیتاشیت

نام دیتاشیت CSD18542KCS
حجم فایل 80.552 کیلوبایت
نوع فایل pdf
تعداد صفحات 14

مشاهده دیتاشیت CSD18542KCS

دانلود دیتاشیت

سایر مستندات

CSD18542KCS Datasheet 10 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: Texas Instruments CSD18542KCS
  • Operating Temperature: -55°C~+175°C@(Tj)
  • Power Dissipation (Pd): 200W
  • Total Gate Charge (Qg@Vgs): 57nC@10V
  • Input Capacitance (Ciss@Vds): 5070pF@30V
  • Continuous Drain Current (Id): 200A
  • Gate Threshold Voltage (Vgs(th)@Id): 2.2V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 44mΩ@100A,10V
  • Package: TO-220
  • Manufacturer: Texas Instruments
  • Power Dissipation (Max): 200W (Tc)
  • Base Part Number: CSD1854
  • Gate Charge (Qg) (Max) @ Vgs: 57nC @ 10V
  • FET Feature: -
  • Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
  • Series: NexFET™
  • Current - Continuous Drain (Id) @ 25°C: 200A (Ta)
  • Supplier Device Package: TO-220-3
  • Vgs (Max): ±20V
  • Package / Case: TO-220-3
  • Drain to Source Voltage (Vdss): 60V
  • Rds On (Max) @ Id, Vgs: 44mOhm @ 100A, 10V
  • Input Capacitance (Ciss) (Max) @ Vds: 5070pF @ 30V
  • Packaging: Tray
  • Vgs(th) (Max) @ Id: 2.2V @ 250µA
  • Mounting Type: Through Hole
  • Technology: MOSFET (Metal Oxide)
  • Part Status: Active
  • FET Type: N-Channel
  • detail: N-Channel 60V 200A (Ta) 200W (Tc) Through Hole TO-220-3
