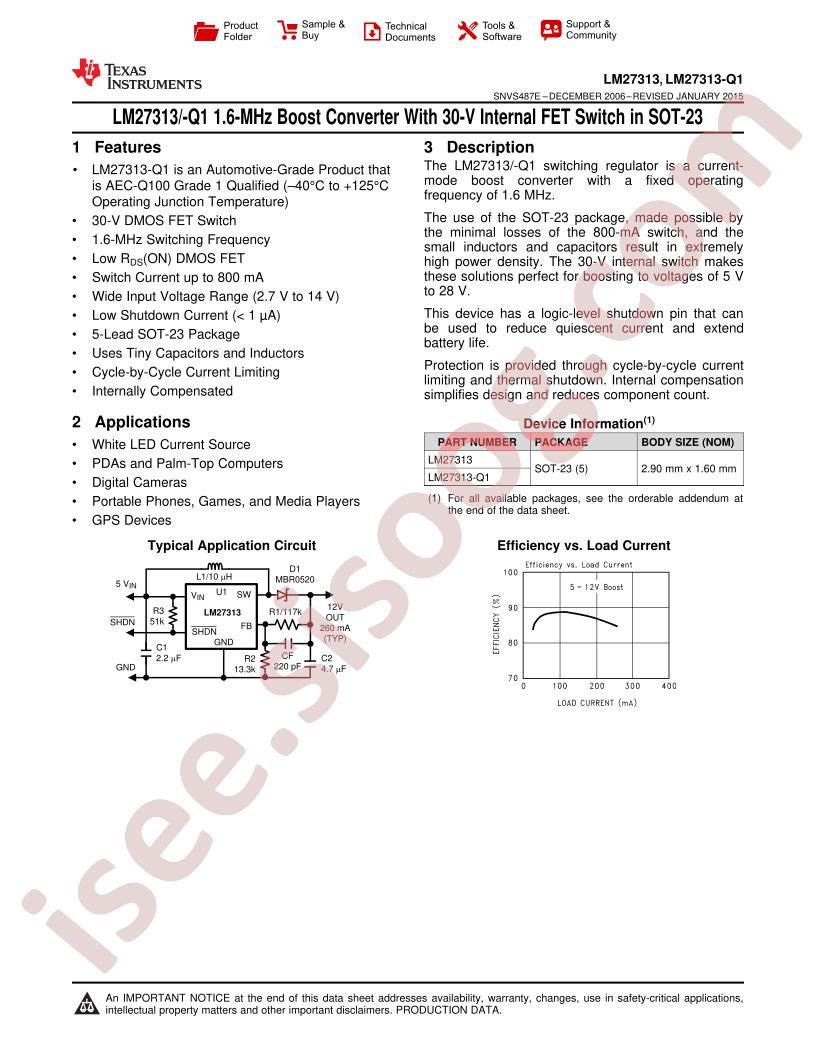

LM27313XMF/NOPB Datasheet
Datasheet specifications
| Datasheet's name | LM27313XMF/NOPB |
|---|---|
| File size | 87.251 KB |
| File type | |
| Number of pages | 25 |
Download Datasheet LM27313XMF/NOPB |
Download Datasheet |
|---|
Other documentations
LM27313 26 pages
Technical specifications
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: boost converterType
- Topology: Boost
- Datasheet: Texas Instruments LM27313XMF/NOPB
- Output Type: Adjustable
- Input Voltage: 2.7V~14V
- Output Voltage: 5V~28V
- Number of Outputs: 1
- Switching Frequency: 1.6MHz
- Output Current (Max): 800mA
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: NO
- Package: SOT-23-5
- Manufacturer: Texas Instruments
- Voltage - Input (Max): 14V
- Frequency - Switching: 1.6MHz
- Packaging: Cut Tape (CT)
- Series: -
- Output Configuration: Positive
- Base Part Number: LM2731
- Supplier Device Package: SOT-23-5
- Mounting Type: Surface Mount
- Voltage - Output (Max): 28V
- Synchronous Rectifier: No
- Package / Case: SC-74A, SOT-753
- Voltage - Output (Min/Fixed): 5V
- Voltage - Input (Min): 2.7V
- Part Status: Active
- Current - Output: 800mA (Switch)
- detail: Boost Switching Regulator IC Positive Adjustable 5V 1 Output 800mA (Switch) SC-74A, SOT-753
