- دیتاشیت SN74LV175APWR

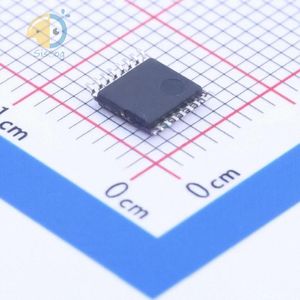

SN74LV175APWR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | SN74LV175APWR |
|---|---|
| حجم فایل | 89.035 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 17 |
دانلود دیتاشیت SN74LV175APWR |
دانلود دیتاشیت |
|---|
سایر مستندات
SN54LV175A, SN74LV175A 19 pages
مشخصات فنی
- RoHS: true
- Type: D-Type
- Series: 74LV
- Category: Logic ICs/Flip Flops
- Function: Reset
- Datasheet: Texas Instruments SN74LV175APWR
- Output Type: 互补型
- Sink Current: 12mA
- Trigger Type: 上升沿
- Source Current: 12mA
- Supply Voltage: 2V~5.5V
- Clock Frequency: 165MHz
- Input Capacitance: 1.4pF
- Number of Elements: 1
- Operating Temperature: -40°C~+85°C
- Quiescent Current (Iq): 20uA
- Maximum Propagation Delay: 9.3ns@5V,50pF
- Number of Bits per Element: 4
- Package: TSSOP-16
- Manufacturer: Texas Instruments
- Max Propagation Delay @ V, Max CL: 9.3ns @ 5V, 50pF
- Package / Case: 16-TSSOP (0.173", 4.40mm Width)
- Current - Quiescent (Iq): 20µA
- Base Part Number: SN74LV17
- Supplier Device Package: 16-TSSOP
- Packaging: Cut Tape (CT)
- Current - Output High, Low: 12mA, 12mA
- Mounting Type: Surface Mount
- Voltage - Supply: 2V ~ 5.5V
- Part Status: Active
- detail: Flip Flop 1 Element D-Type 4 Bit Positive Edge 16-TSSOP (0.173", 4.40mm Width)
