SG2524DR دیتاشیت

SG2524DR

مشخصات دیتاشیت

نام دیتاشیت SG2524DR
حجم فایل 74.974 کیلوبایت
نوع فایل pdf
تعداد صفحات 29

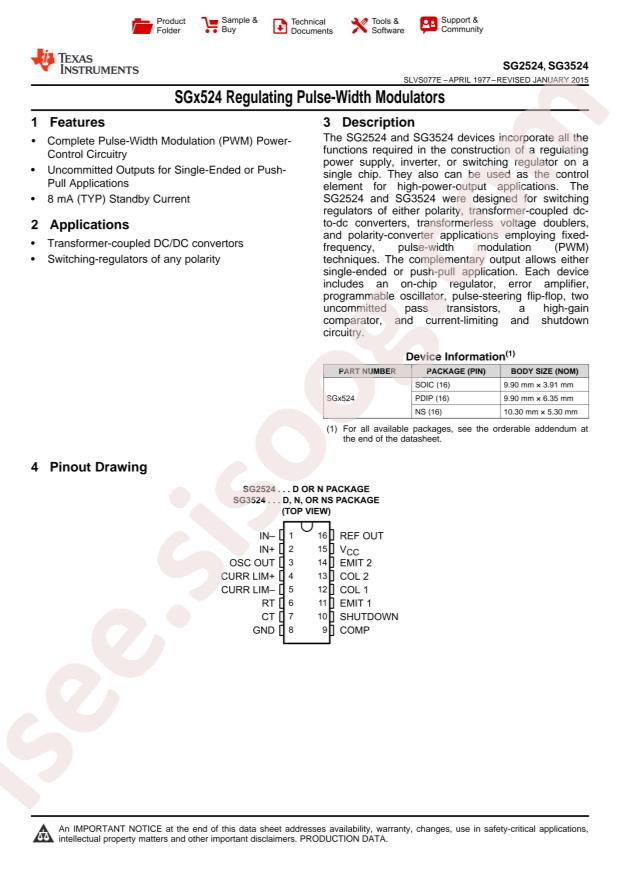

مشاهده دیتاشیت SG2524DR

دانلود دیتاشیت

سایر مستندات

مستندات دیگری یافت نشد!

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/AC-DC Controllers & Regulators
  • Topology: Step-down;Boost;Flyback;Forward;Full-Bridge;Half-Bridge;Push-pull
  • Datasheet: Texas Instruments SG2524DR
  • Duty Cycle: 45%
  • Supply Voltage: 8V~40V
  • Switching Frequency: 450kHz
  • Operating Temperature: -25°C~+85°C@(TA)
  • Package: SOP-16
  • Manufacturer: Texas Instruments
  • Series: -
  • Packaging: -
  • Part Status: Discontinued at Digi-Key
  • Output Type: Transistor Driver
  • Function: Step-Down, Step-Up/Step-Down
  • Output Configuration: Positive
  • Number of Outputs: 2
  • Output Phases: 1
  • Voltage - Supply (Vcc/Vdd): 8V ~ 40V
  • Frequency - Switching: 100kHz ~ 300kHz
  • Duty Cycle (Max): 49%
  • Synchronous Rectifier: Yes
  • Clock Sync: No
  • Serial Interfaces: -
  • Control Features: Enable
  • Mounting Type: Surface Mount
  • Package / Case: 16-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 16-SOIC
  • Base Part Number: SG*524
  • detail: Buck, Flyback, Push-Pull Regulator Positive Output Step-Down, Step-Up/Step-Down DC-DC Controller IC 16-SOIC
