SN74AUC1G14MDBVREP دیتاشیت

SN74AUC1G14MDBVREP

مشخصات دیتاشیت

نام دیتاشیت SN74AUC1G14MDBVREP
حجم فایل 95.877 کیلوبایت
نوع فایل pdf
تعداد صفحات 14

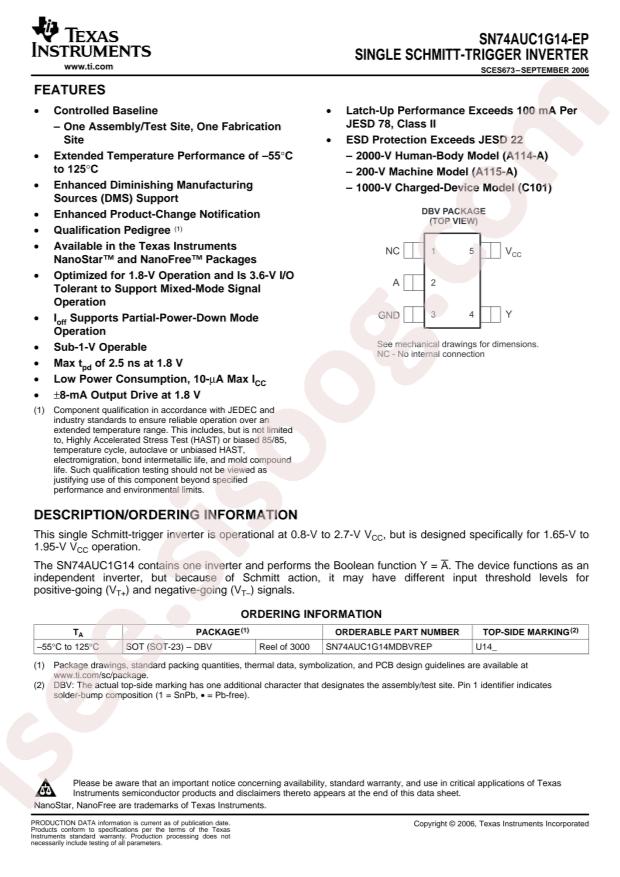

مشاهده دیتاشیت SN74AUC1G14MDBVREP

دانلود دیتاشیت

سایر مستندات

SN74AUC1G14-EP 14 pages

مشخصات فنی

  • RoHS: true
  • Series: 74AUC
  • Category: Logic ICs/Inverters
  • Datasheet: Texas Instruments SN74AUC1G14MDBVREP
  • Input Type: Schmitt Trigger
  • Sink Current: 9mA
  • Source Current: 9mA
  • Number of Inputs: 1
  • Number of Circuits: 1
  • Supply Current (Max): 10uA
  • Low level range (VIL): 0.22V~0.58V
  • Max Propagation Delay: 3ns@2.5V,30pF
  • Operating Temperature: -55°C~+125°C
  • High level range (VIH): 0.5V~1.56V
  • Supply Voltage(Single): 0.8V~2.7V
  • Package: SOT-23-5
  • Manufacturer: Texas Instruments
  • Voltage - Supply: 0.8V ~ 2.7V
  • Logic Level - Low: 0.22V ~ 0.58V
  • Package / Case: SC-74A, SOT-753
  • Max Propagation Delay @ V, Max CL: 3ns @ 2.5V, 30pF
  • Base Part Number: SN74AUC1
  • Mounting Type: Surface Mount
  • Current - Quiescent (Max): 10µA
  • Supplier Device Package: SOT-23-5
  • Logic Type: Inverter
  • Packaging: Cut Tape (CT)
  • Features: Schmitt Trigger
  • Current - Output High, Low: 9mA, 9mA
  • Part Status: Active
  • Logic Level - High: 0.5V ~ 1.56V
  • detail: Inverter IC 1 Channel Schmitt Trigger SOT-23-5
