CSD22205L Datasheet دیتاشیت

CSD22205L Datasheet

مشخصات دیتاشیت

نام دیتاشیت CSD22205L Datasheet
حجم فایل 1220.159 کیلوبایت
نوع فایل pdf
تعداد صفحات 14

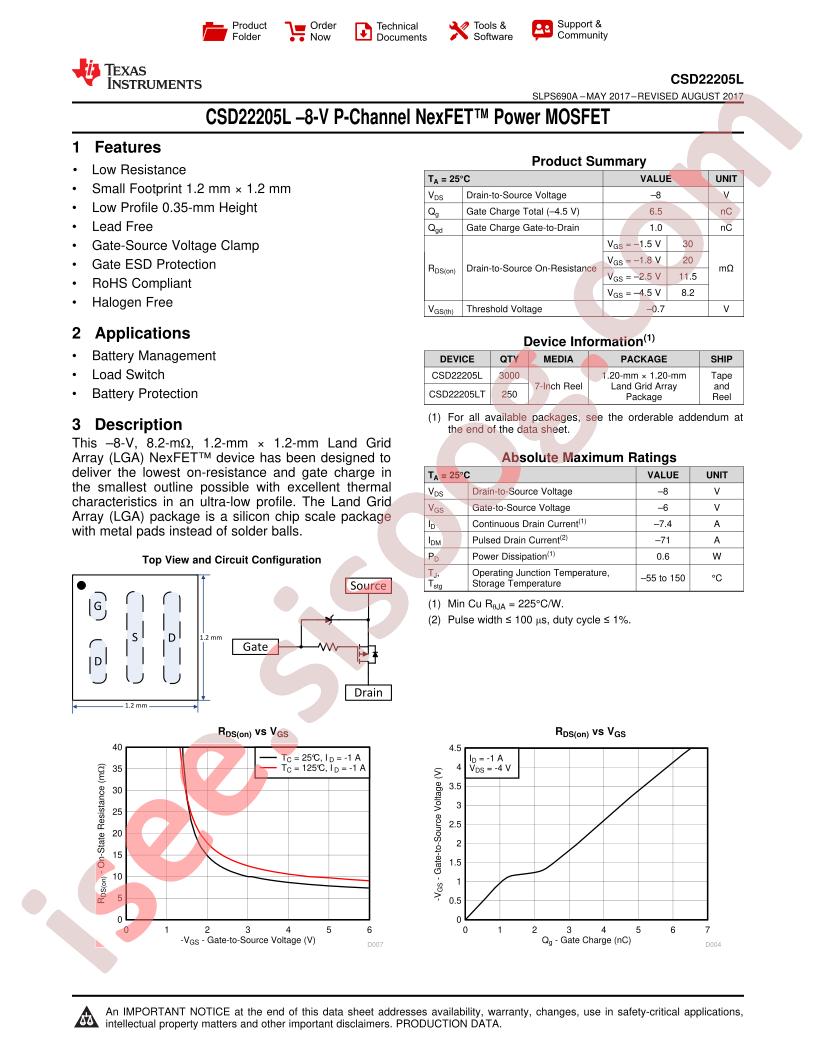

مشاهده دیتاشیت CSD22205L Datasheet

دانلود دیتاشیت

سایر مستندات

CSD22205LT 14 pages

مشخصات فنی

  • RoHS: true
  • Type: P Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: Texas Instruments CSD22205LT
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 600mW
  • Total Gate Charge (Qg@Vgs): 8.5nC@4.5V
  • Drain Source Voltage (Vdss): 8V
  • Input Capacitance (Ciss@Vds): 1390pF@4V
  • Continuous Drain Current (Id): 7.4A
  • Gate Threshold Voltage (Vgs(th)@Id): 1.05V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 9.9mΩ@1A,4.5V
  • Package: PicoStar-4
  • Manufacturer: Texas Instruments
  • Power Dissipation (Max): 600mW (Ta)
  • Base Part Number: CSD222
  • Gate Charge (Qg) (Max) @ Vgs: 8.5nC @ 4.5V
  • FET Feature: -
  • Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4.5V
  • Series: NexFET™
  • Current - Continuous Drain (Id) @ 25°C: 7.4A (Ta)
  • Supplier Device Package: 4-PICOSTAR
  • Vgs (Max): -6V
  • Package / Case: 4-XFLGA
  • Drain to Source Voltage (Vdss): 8V
  • Rds On (Max) @ Id, Vgs: 9.9mOhm @ 1A, 4.5V
  • Input Capacitance (Ciss) (Max) @ Vds: 1390pF @ 4V
  • Packaging: Cut Tape (CT)
  • Vgs(th) (Max) @ Id: 1.05V @ 250µA
  • Mounting Type: Surface Mount
  • Technology: MOSFET (Metal Oxide)
  • Part Status: Active
  • FET Type: P-Channel
  • detail: P-Channel 8V 7.4A (Ta) 600mW (Ta) Surface Mount 4-PICOSTAR
