CSD22205LT دیتاشیت

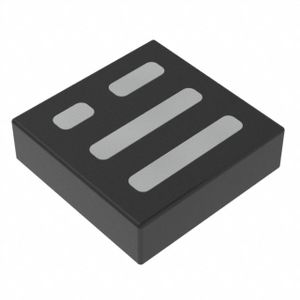

CSD22205LT

مشخصات دیتاشیت

نام دیتاشیت CSD22205LT
حجم فایل 79.352 کیلوبایت
نوع فایل pdf
تعداد صفحات 14

مشاهده دیتاشیت CSD22205LT

دانلود دیتاشیت

سایر مستندات

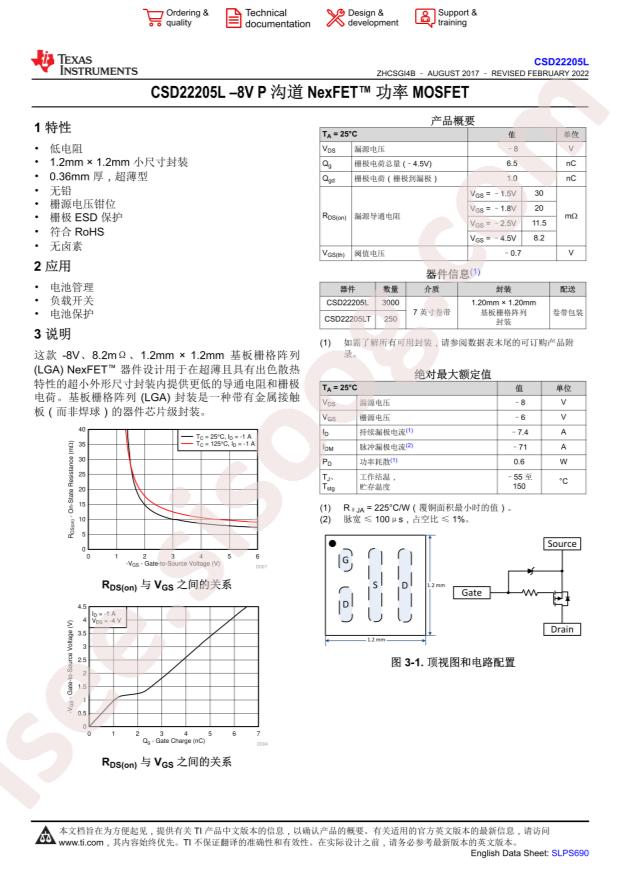

CSD22205L Datasheet 14 pages

مشخصات فنی

  • RoHS: true
  • Type: P Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: Texas Instruments CSD22205LT
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 600mW
  • Total Gate Charge (Qg@Vgs): 8.5nC@4.5V
  • Drain Source Voltage (Vdss): 8V
  • Input Capacitance (Ciss@Vds): 1390pF@4V
  • Continuous Drain Current (Id): 7.4A
  • Gate Threshold Voltage (Vgs(th)@Id): 1.05V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 9.9mΩ@1A,4.5V
  • Package: PicoStar-4
  • Manufacturer: Texas Instruments
  • Power Dissipation (Max): 600mW (Ta)
  • Base Part Number: CSD222
  • Gate Charge (Qg) (Max) @ Vgs: 8.5nC @ 4.5V
  • FET Feature: -
  • Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4.5V
  • Series: NexFET™
  • Current - Continuous Drain (Id) @ 25°C: 7.4A (Ta)
  • Supplier Device Package: 4-PICOSTAR
  • Vgs (Max): -6V
  • Package / Case: 4-XFLGA
  • Drain to Source Voltage (Vdss): 8V
  • Rds On (Max) @ Id, Vgs: 9.9mOhm @ 1A, 4.5V
  • Input Capacitance (Ciss) (Max) @ Vds: 1390pF @ 4V
  • Packaging: Cut Tape (CT)
  • Vgs(th) (Max) @ Id: 1.05V @ 250µA
  • Mounting Type: Surface Mount
  • Technology: MOSFET (Metal Oxide)
  • Part Status: Active
  • FET Type: P-Channel
  • detail: P-Channel 8V 7.4A (Ta) 600mW (Ta) Surface Mount 4-PICOSTAR
