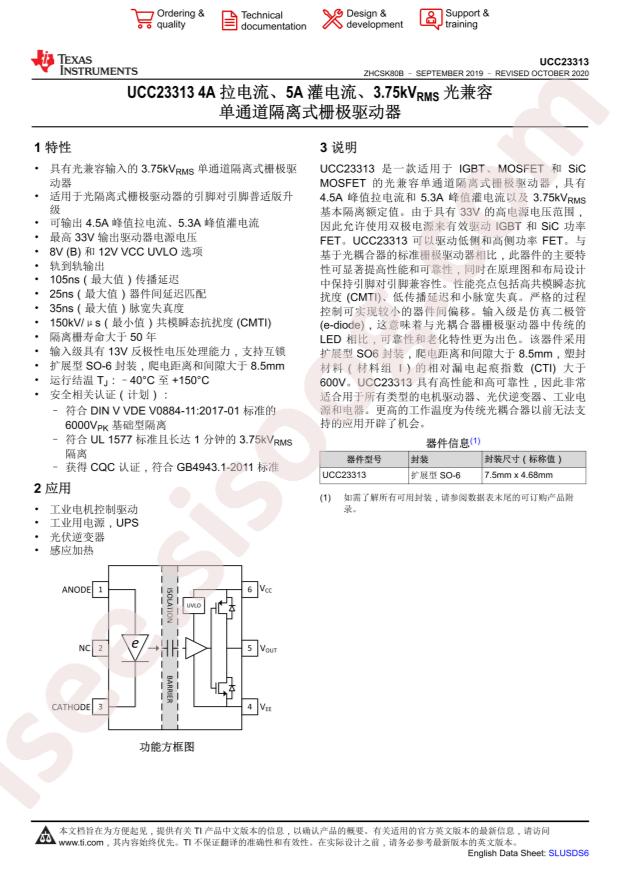

UCC23313DWYR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
UCC23313DWYR
|
|
حجم فایل
|
90.091
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
39
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Gate Drive ICs
-
Datasheet:
Texas Instruments UCC23313DWYR
-
Package:
SOP-6-300mil
-
Manufacturer:
Texas Instruments
-
Approval Agency:
CQC, UL, VDE
-
Rise / Fall Time (Typ):
28ns, 25ns (Max)
-
Packaging:
Cut Tape (CT)
-
Series:
-
-
Current - DC Forward (If) (Max):
16mA
-
Current - Peak Output:
4.5A, 5.3A
-
Supplier Device Package:
6-SOIC
-
Common Mode Transient Immunity (Min):
150kV/µs
-
Package / Case:
6-SOIC (0.295", 7.50mm Width)
-
Propagation Delay tpLH / tpHL (Max):
105ns, 105ns
-
Voltage - Forward (Vf) (Typ):
2.1V
-
Technology:
Optical Coupling
-
Part Status:
Active
-
Base Part Number:
UCC233
-
Operating Temperature:
-40°C ~ 125°C
-
Pulse Width Distortion (Max):
35ns
-
Mounting Type:
Surface Mount
-
Voltage - Isolation:
3750Vrms
-
Current - Output High, Low:
4.5A, 5.3A
-
Voltage - Output Supply:
14V ~ 33V
-
Number of Channels:
1
-
detail:
4.5A, 5.3A Gate Driver Optical Coupling 3750Vrms 1 Channel 6-SOIC
