UCC2752x Family دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|

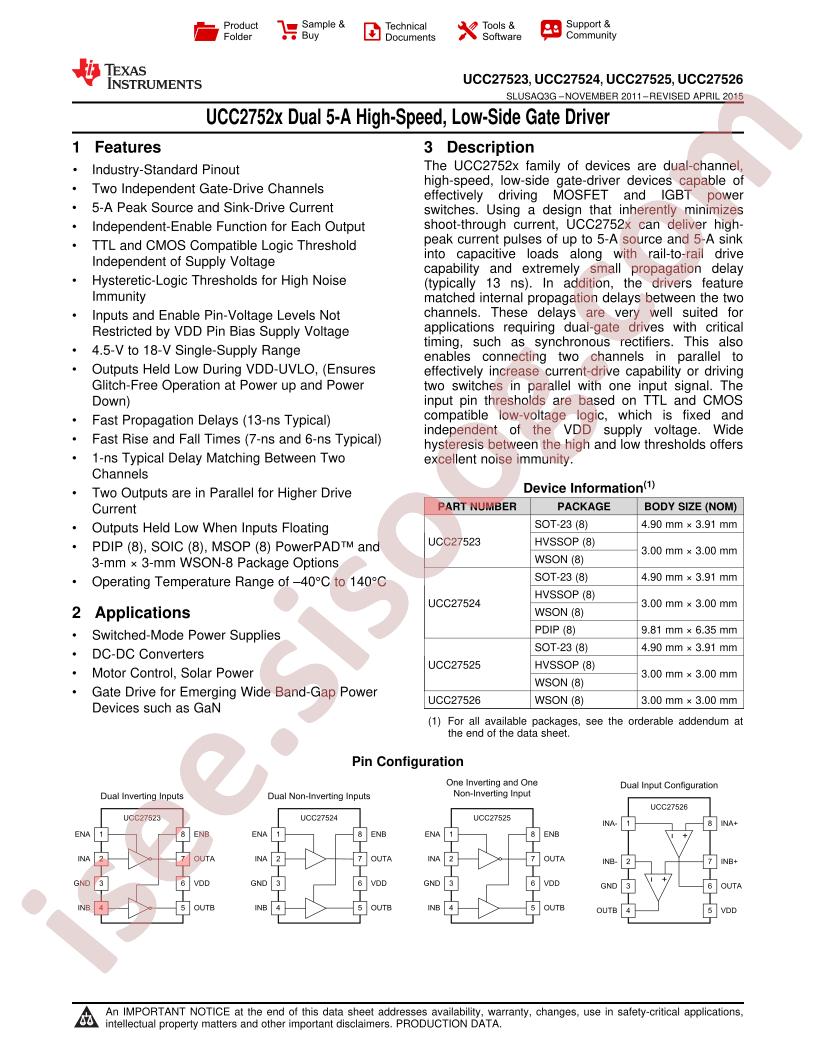

UCC2752x Family
|
|
حجم فایل
|
2285.202
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
45
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Gate Drive ICs
-
Datasheet:
Texas Instruments UCC27525DSDT
-
Fall Time:
6ns
-
Load Type:
IGBT;MOSFET
-
Rise Time:
7ns
-
Supply Voltage:
4.5V~18V
-
Number of Drivers:
2
-
Driven Configuration:
Low Side
-
Operating Temperature:
-40°C~+140°C@(Tj)
-
Peak Output Current(sink):
5A
-
Peak Output Current(source):
5A
-
Package:
DFN-8(3x3)
-
Manufacturer:
Texas Instruments
-
Voltage - Supply:
4.5V ~ 18V
-
Current - Peak Output (Source, Sink):
5A, 5A
-
Input Type:
Inverting, Non-Inverting
-
Rise / Fall Time (Typ):
7ns, 6ns
-
Series:
-
-
Base Part Number:
UCC275
-
Supplier Device Package:
8-SON (3x3)
-
Channel Type:
Independent
-
Mounting Type:
Surface Mount
-
Gate Type:
IGBT, N-Channel MOSFET
-
Logic Voltage - VIL, VIH:
1V, 2.3V
-
Package / Case:
8-WDFN Exposed Pad
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
detail:
Low-Side Gate Driver IC Inverting, Non-Inverting 8-SON (3x3)
