CSD18532NQ5B دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت CSD18532NQ5B	دانلود دیتاشیت

RoHS: true
Category: Triode/MOS Tube/Transistor/MOSFETs
Datasheet: Texas Instruments CSD18532NQ5B

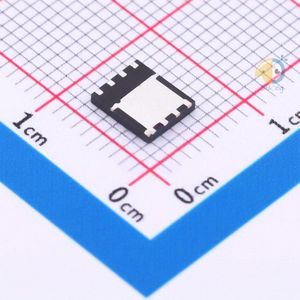

Package: SON-8(6x5)
Manufacturer: Texas Instruments
Power Dissipation (Max): 3.2W (Ta)
Base Part Number: CSD1853
Gate Charge (Qg) (Max) @ Vgs: 64nC @ 10V
FET Feature: -
Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
Series: NexFET™
Current - Continuous Drain (Id) @ 25°C: 22A (Ta), 100A (Tc)
Supplier Device Package: 8-VSON-CLIP (5x6)
Vgs (Max): ±20V
Operating Temperature: -55°C ~ 150°C (TJ)
Package / Case: 8-PowerTDFN
Drain to Source Voltage (Vdss): 60V
Rds On (Max) @ Id, Vgs: 3.4mOhm @ 25A, 10V
Input Capacitance (Ciss) (Max) @ Vds: 5340pF @ 30V
Packaging: Cut Tape (CT)
Vgs(th) (Max) @ Id: 3.4V @ 250µA
Mounting Type: Surface Mount
Technology: MOSFET (Metal Oxide)
Part Status: Active
FET Type: N-Channel
detail: N-Channel 60V 22A (Ta), 100A (Tc) 3.2W (Ta) Surface Mount 8-VSON-CLIP (5x6)
