SN74GTL2003RKSR دیتاشیت

مشخصات دیتاشیت

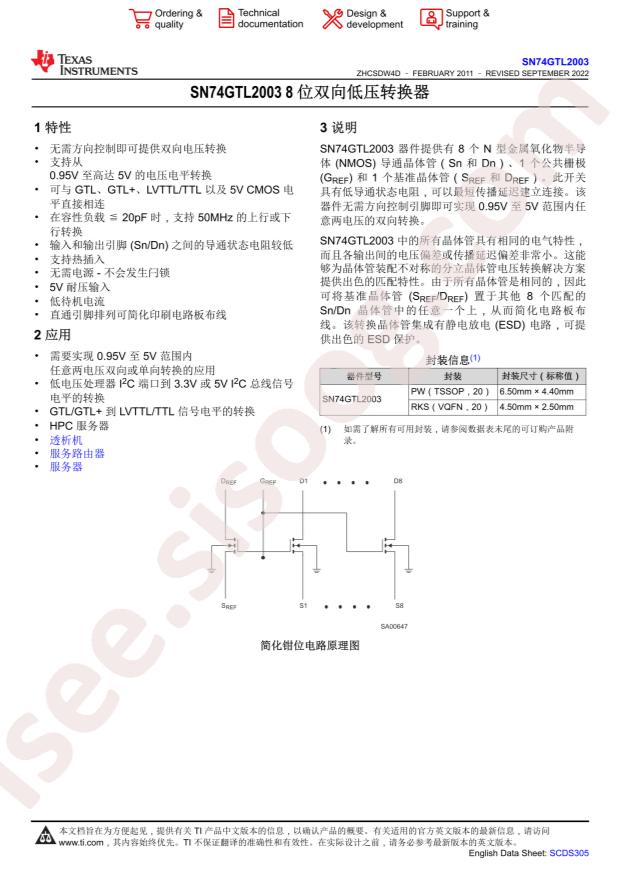

مشاهده دیتاشیت SN74GTL2003RKSR	دانلود دیتاشیت

RoHS: true
Category: Logic ICs/Translators / Level Shifters
Features: Automatic direction detection
Data Rate: -
Datasheet: Texas Instruments SN74GTL2003RKSR
Output Type: Open Drain
Channel Type: Bi-Directional
Input Signal: -
Output Signal: -
Number of Circuits: 1
Channels per Circuit: 8
Operating Temperature: -40°C~+85°C
Supply Voltage (VCCA): 0.95V~5.5V
Supply Voltage (VCCB): 0.95V~5.5V
Package: DHVQFN-20-EP(2.5x4.5)
Manufacturer: Texas Instruments
Base Part Number: SN74GTL2
Translator Type: Voltage Level
Package / Case: 20-VFQFN Exposed Pad
Series: 74GTL
Voltage - VCCA: 0.95V ~ 5.5V
Supplier Device Package: 20-VQFN (4.5x2.5)
Mounting Type: Surface Mount
Part Status: Active
Packaging: Cut Tape (CT)
Voltage - VCCB: 0.95V ~ 5.5V
detail: Voltage Level Translator Bidirectional 1 Circuit 8 Channel 20-VQFN (4.5x2.5)
