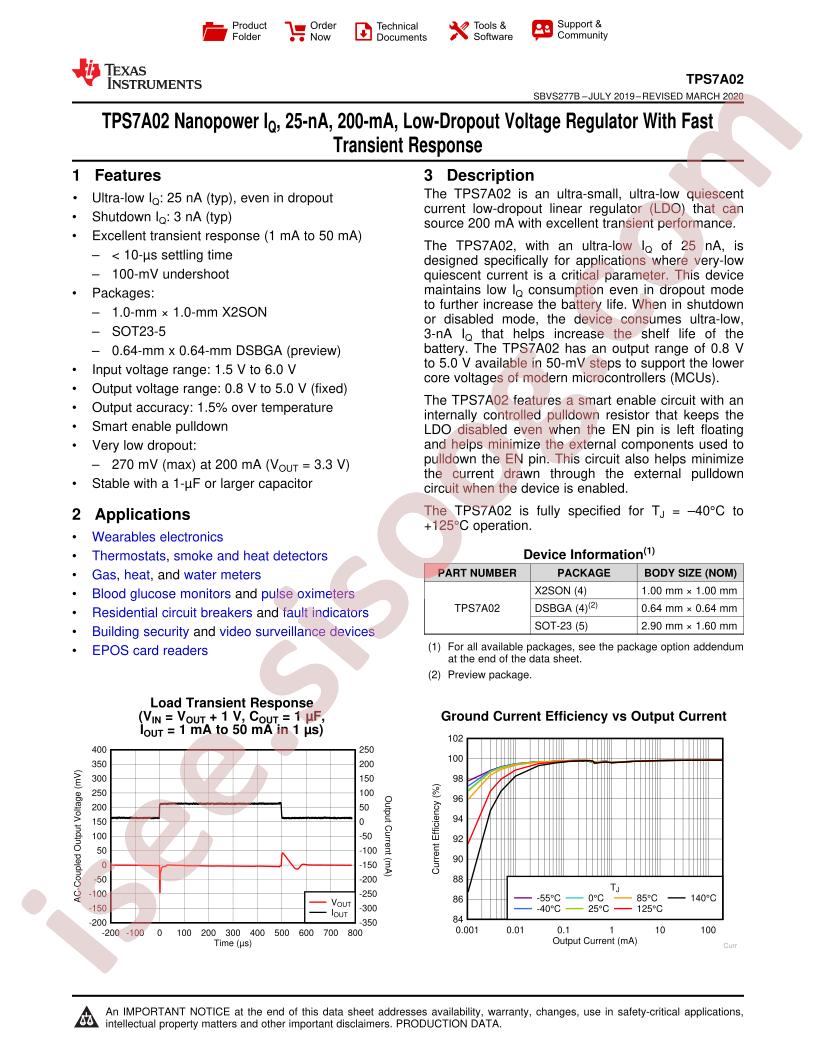

دیتاشیت TPS7A0230PDQNR
مشخصات دیتاشیت
| نام دیتاشیت |
TPS7A0
|
| حجم فایل |
3253.098
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
43
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Texas Instruments TPS7A0230PDQNR
-
Output Current:
200mA
-
Output Voltage:
3V
-
Dropout Voltage:
0.36V@(200mA)
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
6V
-
Operating Temperature:
-40°C~+125°C@(Tj)
-
Quiescent Current (Ground Current):
60nA
-
Power Supply Rejection Ratio (PSRR):
55dB@(1kHz)
-
Package:
X2-SON-4
-
Manufacturer:
Texas Instruments
-
Voltage - Input (Max):
6V
-
Voltage - Output (Max):
-
-
Voltage Dropout (Max):
0.36V @ 200mA
-
Series:
-
-
Output Configuration:
Positive
-
Current - Quiescent (Iq):
60µA
-
Base Part Number:
TPS7A0
-
Supplier Device Package:
4-X2SON (1x1)
-
Mounting Type:
Surface Mount
-
Voltage - Output (Min/Fixed):
3V
-
Number of Regulators:
1
-
PSRR:
55dB (1kHz)
-
Output Type:
Fixed
-
Package / Case:
4-XDFN Exposed Pad
-
Protection Features:
Over Current, Over Temperature, Under Voltage Lockout (UVLO)
-
Control Features:
Enable
-
Part Status:
Active
-
Current - Output:
200mA
-
detail:
Linear Voltage Regulator IC 1 Output 200mA 4-X2SON (1x1)
