دیتاشیت TPS62136RGXT

مشخصات دیتاشیت

TPS62136RGXT	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down

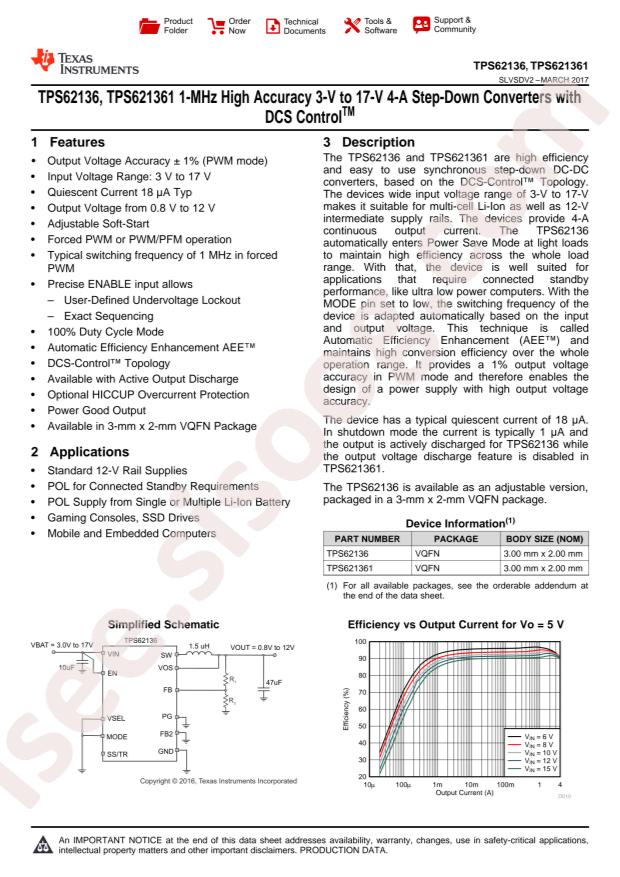

Datasheet: Texas Instruments TPS62136RGXT
Output Type: Adjustable
Input Voltage: 3V~17V
Output Voltage: 0.8V~12V
Number of Outputs: 1
Switching Frequency: 1MHz
Output Current (Max): 4A
Operating Temperature: -40°C~+125°C@(TJ)
Synchronous Rectification: Yes
Package: VQFN-11-HR(2x3)
Manufacturer: Texas Instruments
Voltage - Input (Max): 17V
Frequency - Switching: 1MHz
Packaging: Cut Tape (CT)
Series: -
Output Configuration: Positive
Base Part Number: TPS621
Supplier Device Package: 11-VQFN-HR (2x3)
Mounting Type: Surface Mount
Voltage - Output (Max): 12V
Synchronous Rectifier: Yes
Package / Case: 11-VFQFN
Voltage - Output (Min/Fixed): 0.8V
Voltage - Input (Min): 3V
Part Status: Active
Current - Output: 4A
detail: Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 4A 11-VFQFN
