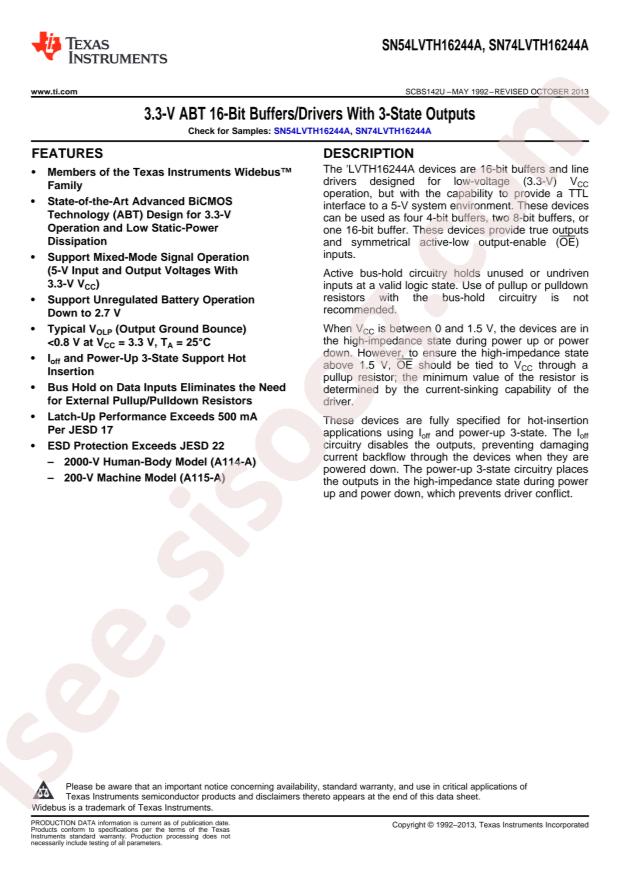

- دیتاشیت SN74LVTH16244ADLR
SN74LVTH16244ADLR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | SN74LVTH16244ADLR |
|---|---|
| حجم فایل | 91.185 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 23 |
دانلود دیتاشیت SN74LVTH16244ADLR |
دانلود دیتاشیت |
|---|
سایر مستندات
Logic Guide 20 pages
SN54/74LVTH16244A 23 pages
مشخصات فنی
- RoHS: true
- Category: Logic ICs/Buffer/Driver/Transceiver
- Datasheet: Texas Instruments SN74LVTH16244ADLR
- Input type: -
- output type: Tri-State
- Logic Family: 74LVTH
- Sink Current: 64mA
- Source Current: 32mA
- Supply Voltage: 2.7V~3.6V
- Number of Elements: 4
- Operating Temperature: -40°C~+125°C
- Number of Bits per Element: 4
- Package: SSOP-48-300mil
- Manufacturer: Texas Instruments
- Voltage - Supply: 2.7V ~ 3.6V
- Package / Case: 48-BSSOP (0.295", 7.50mm Width)
- Series: 74LVTH
- Base Part Number: SN74LVT
- Supplier Device Package: 48-SSOP
- Mounting Type: Surface Mount
- Logic Type: Buffer, Non-Inverting
- Packaging: Cut Tape (CT)
- Current - Output High, Low: 32mA, 64mA
- Part Status: Active
- detail: Buffer, Non-Inverting 4 Element 4 Bit per Element 3-State Output 48-SSOP
