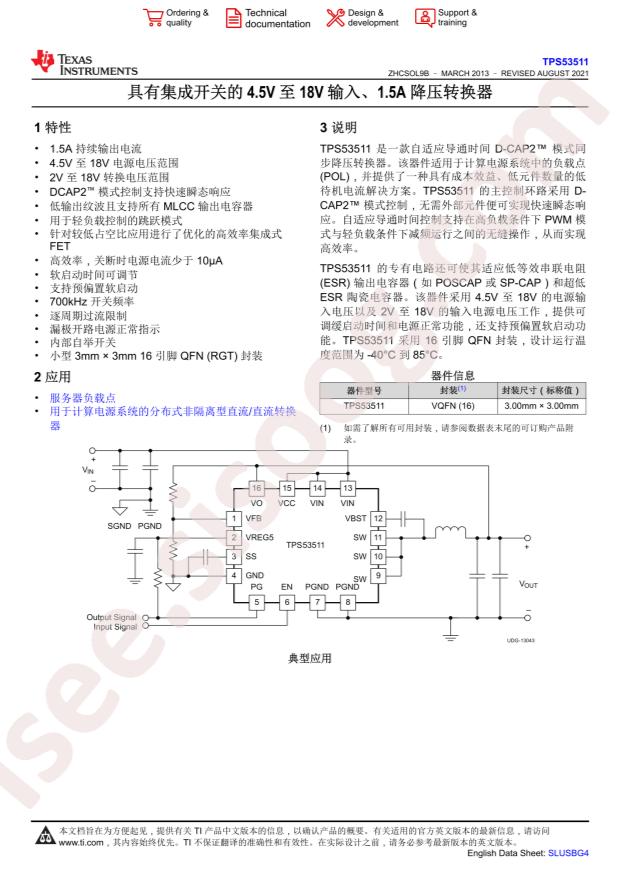

TPS53511RGTT دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TPS53511RGTT
|
|
حجم فایل
|
78.339
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
32
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Datasheet:
Texas Instruments TPS53511RGTT
-
Package:
QFN-16-EP(3x3)
-
Manufacturer:
Texas Instruments
-
Function:
Step-Down
-
Voltage - Input (Max):
18V
-
Frequency - Switching:
700kHz
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Packaging:
Cut Tape (CT)
-
Series:
D-CAP2™
-
Output Configuration:
Positive
-
Base Part Number:
TPS535
-
Supplier Device Package:
16-QFN (3x3)
-
Mounting Type:
Surface Mount
-
Number of Outputs:
1
-
Voltage - Output (Max):
5V
-
Synchronous Rectifier:
Yes
-
Output Type:
Adjustable
-
Package / Case:
16-VFQFN Exposed Pad
-
Topology:
Buck
-
Voltage - Output (Min/Fixed):
0.76V
-
Voltage - Input (Min):
2V
-
Part Status:
Active
-
Current - Output:
1.5A
-
detail:
Buck Switching Regulator IC Positive Adjustable 0.76V 1 Output 1.5A 16-VFQFN Exposed Pad
