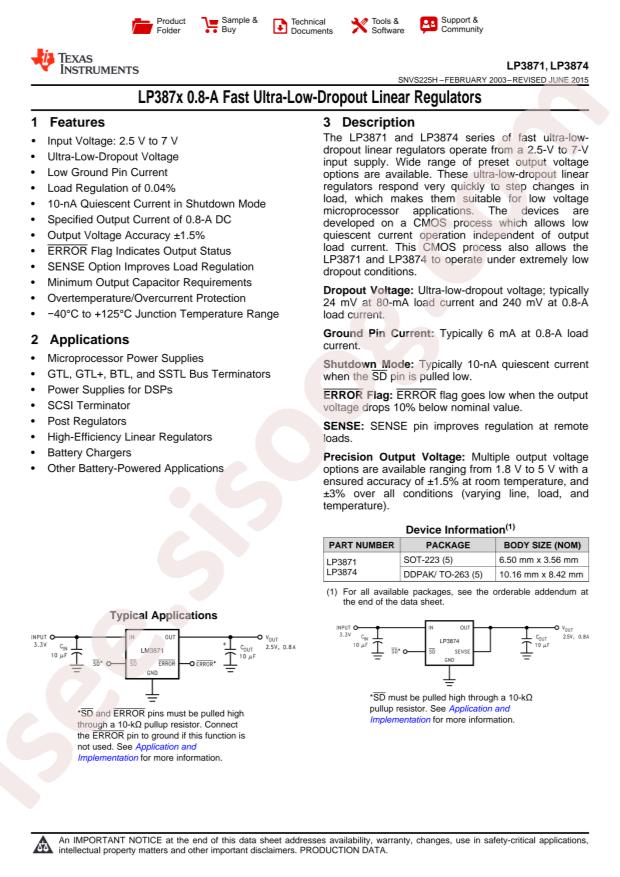

- دیتاشیت LP3871EMP-3.3/NOPB
LP3871EMP-3.3/NOPB دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | LP3871EMP-3.3/NOPB |
|---|---|
| حجم فایل | 102.858 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 26 |
دانلود دیتاشیت LP3871EMP-3.3/NOPB |
دانلود دیتاشیت |
|---|
سایر مستندات
LP3871/74 25 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments LP3871EMP-5.0/NOPB
- Output Type: Fixed
- Output Current: 800mA
- Output Voltage: 5V
- Dropout Voltage: 350mV@(800mA)
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 7V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 5mA
- Power Supply Rejection Ratio (PSRR): 73dB@(120Hz)
- Package: SOT-223-5
- Manufacturer: Texas Instruments
- Voltage - Input (Max): 7V
- Packaging: Cut Tape (CT)
- Series: -
- Current - Quiescent (Iq): 5mA
- Current - Supply (Max): 15mA
- Voltage - Output (Min/Fixed): 5V
- Number of Regulators: 1
- PSRR: 73dB ~ 57dB (120Hz)
- Supplier Device Package: SOT-223-5
- Package / Case: TO-261-5, TO-261AB
- Control Features: Enable
- Part Status: Active
- Base Part Number: LP3871
- Voltage Dropout (Max): 0.35V @ 800mA
- Current - Output: 800mA
- Output Configuration: Positive
- Mounting Type: Surface Mount
- Voltage - Output (Max): -
- Protection Features: Over Current, Over Temperature, Short Circuit
- detail: Linear Voltage Regulator IC 1 Output 800mA SOT-223-5
