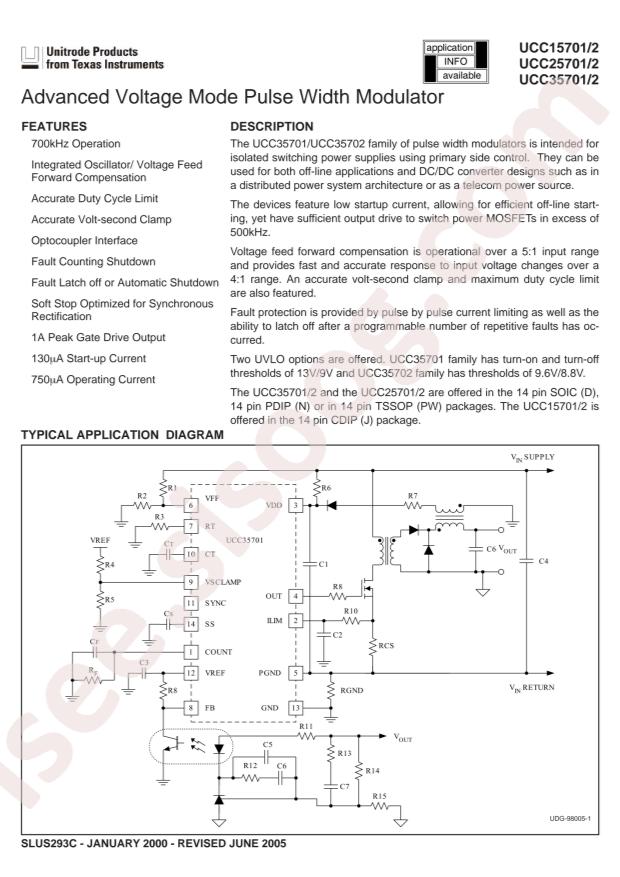

- دیتاشیت UCC35701PW
UCC35701PW دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | UCC35701PW |
|---|---|
| حجم فایل | 88.478 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 21 |
دانلود دیتاشیت UCC35701PW |
دانلود دیتاشیت |
|---|
سایر مستندات
UCC15701/2, UCC25701/2, UCC35701/2 20 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/DC-DC Controllers
- Datasheet: Texas Instruments UCC35701PW
- Package: TSSOP-14
- Manufacturer: Texas Instruments
- Base Part Number: UCC357
- Mounting Type: Surface Mount
- Operating Temperature: -55°C ~ 150°C (TJ)
- Series: -
- Duty Cycle: 99%
- Internal Switch(s): No
- Supplier Device Package: 14-TSSOP
- Voltage - Breakdown: -
- Topology: Boost, Buck, Flyback, Forward
- Voltage - Start Up: 13V
- Output Isolation: Isolated
- Packaging: Tube
- Package / Case: 14-TSSOP (0.173", 4.40mm Width)
- Control Features: Soft Start, Sync
- Voltage - Supply (Vcc/Vdd): 9V ~ 15V
- Frequency - Switching: 700kHz
- Part Status: Active
- Fault Protection: Current Limiting
- detail: Converter Offline Boost, Buck, Flyback, Forward Topology 700kHz 14-TSSOP
