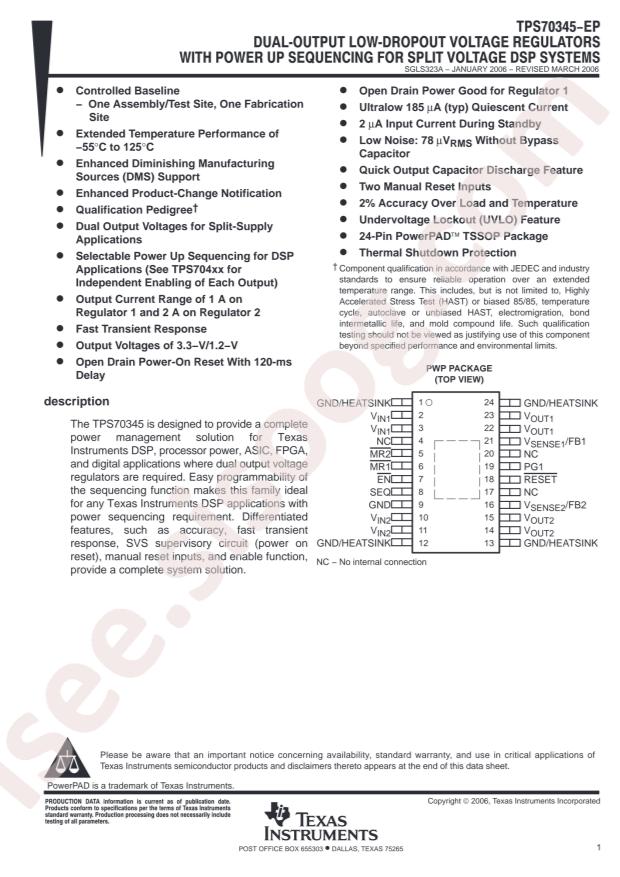

TPS70345MPWPREP دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TPS70345MPWPREP
|
|
حجم فایل
|
95.879
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
35
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Texas Instruments TPS70345MPWPREP
-
Package:
TSSOP-24-EP
-
Manufacturer:
Texas Instruments
-
Voltage - Input (Max):
6V
-
Voltage - Output (Max):
-
-
Voltage Dropout (Max):
0.26V @ 1A, -
-
Operating Temperature:
-55°C ~ 125°C
-
Output Configuration:
Positive
-
Series:
-
-
Current - Quiescent (Iq):
250µA
-
Base Part Number:
TPS703
-
Supplier Device Package:
24-HTSSOP
-
Mounting Type:
Surface Mount
-
Voltage - Output (Min/Fixed):
3.3V, 1.2V
-
Number of Regulators:
2
-
PSRR:
-
-
Output Type:
Fixed
-
Package / Case:
24-TSSOP (0.173", 4.40mm Width) Exposed Pad
-
Packaging:
Cut Tape (CT)
-
Protection Features:
Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
-
Control Features:
Enable, Power Good, Reset, Sequencing
-
Part Status:
Discontinued at Digi-Key
-
Current - Output:
1A, 2A
-
detail:
Linear Voltage Regulator IC 2 Output 1A, 2A 24-HTSSOP
