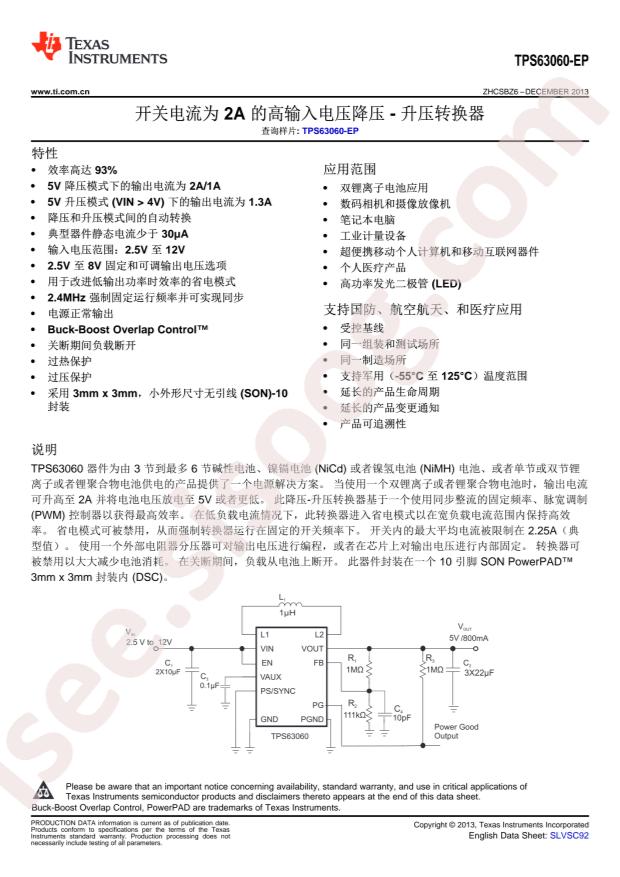

TPS63060MDSCTEP دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TPS63060MDSCTEP
|
|
حجم فایل
|
86.784
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
27
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Buck-boost type
-
Topology:
Step-down-Boost
-
Datasheet:
Texas Instruments TPS63060MDSCTEP
-
Output Type:
Adjustable
-
Input Voltage:
2.5V~12V
-
Output Voltage:
2.5V~8V
-
Number of Outputs:
1
-
Switching Frequency:
2.4MHz
-
Output Current (Max):
2A
-
Operating Temperature:
-55°C~+125°C@(TJ)
-
Synchronous Rectification:
Yes
-

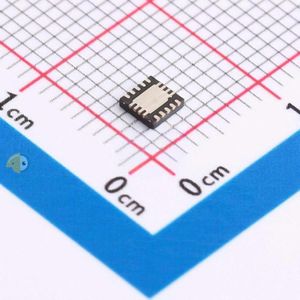

Package:
DFN-10(3x3)
-
Manufacturer:
Texas Instruments
-
Voltage - Input (Max):
12V
-
Frequency - Switching:
2.4MHz
-
Packaging:
Cut Tape (CT)
-
Series:
-
-
Output Configuration:
Positive
-
Base Part Number:
TPS630
-
Supplier Device Package:
10-WSON (3x3)
-
Mounting Type:
Surface Mount
-
Voltage - Output (Max):
8V
-
Synchronous Rectifier:
Yes
-
Package / Case:
10-WFDFN Exposed Pad
-
Voltage - Output (Min/Fixed):
2.5V
-
Voltage - Input (Min):
2.5V
-
Part Status:
Active
-
Current - Output:
2A (Switch)
-
detail:
Buck-Boost Switching Regulator IC Positive Adjustable 2.5V 1 Output 2A (Switch) 10-WFDFN Exposed Pad
