DAC8168ICPW دیتاشیت

DAC8168ICPW

مشخصات دیتاشیت

نام دیتاشیت DAC8168ICPW
حجم فایل 2214.252 کیلوبایت
نوع فایل pdf
تعداد صفحات 58

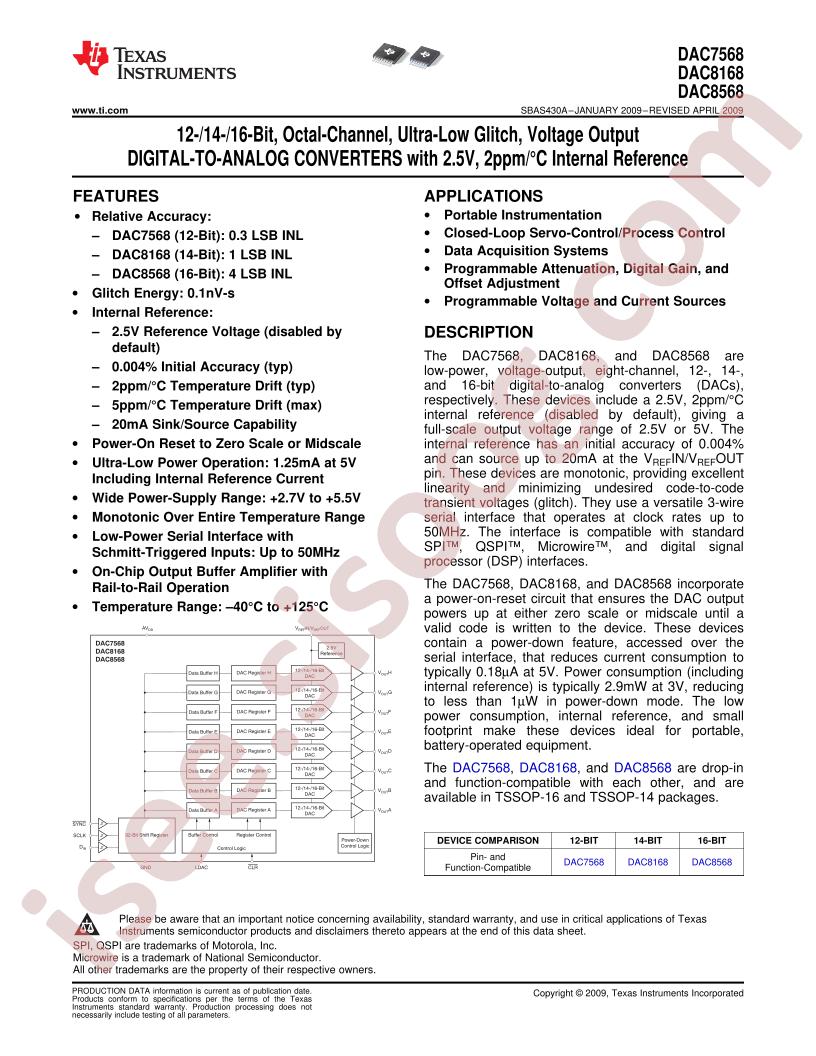

دانلود دیتاشیت DAC8168ICPW

دانلود دیتاشیت

سایر مستندات

DAC7568,8168,8568 68 pages

TI DAC8168IAPWR 69 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Texas Instruments DAC8168ICPW
  • Interface: SPI;DSP
  • Resolution: 14Bit
  • Output Type: Voltage-缓冲
  • Settling Time: 10us
  • Supply Voltage: 2.7V~5.5V
  • Integral nonlinearity: ±1LSB;±0.1LSB
  • Operating Temperature: -40°C~+125°C
  • Package: TSSOP-16
  • Manufacturer: Texas Instruments
  • Base Part Number: DAC8168
  • Architecture: String DAC
  • Number of Bits: 14
  • Series: -
  • Reference Type: External, Internal
  • Number of D/A Converters: 8
  • Supplier Device Package: 16-TSSOP
  • Mounting Type: Surface Mount
  • Differential Output: No
  • Package / Case: 16-TSSOP (0.173", 4.40mm Width)
  • Data Interface: SPI, DSP
  • Packaging: Tube
  • Voltage - Supply, Analog: 2.7V ~ 5.5V
  • Voltage - Supply, Digital: 2.7V ~ 5.5V
  • Part Status: Active
  • INL/DNL (LSB): ±1, ±0.1
  • detail: 14 Bit Digital to Analog Converter 8 16-TSSOP
