- دیتاشیت TLV73310PQDRVRQ1
TLV73310PQDRVRQ1 دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | TLV73310PQDRVRQ1 |
|---|---|
| حجم فایل | 85.307 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 28 |
دانلود دیتاشیت TLV73310PQDRVRQ1 |
دانلود دیتاشیت |
|---|
سایر مستندات
TLV733xxP-Q1 Datasheet 32 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments TLV73310PQDRVRQ1
- Output Type: Fixed
- Output Current: 300mA
- Output Voltage: 1V
- Dropout Voltage: 450mV@(300mA)
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 5.5V
- Operating Temperature: -40°C~+125°C@(Ta)
- Quiescent Current (Ground Current): 62uA
- Power Supply Rejection Ratio (PSRR): 68dB@(100Hz),28dB@(100kHz)

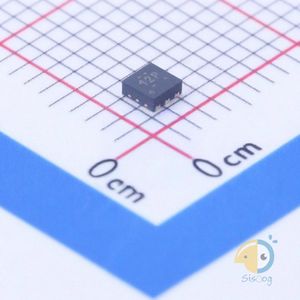

- Package: DFN-6(2x2)
- Manufacturer: Texas Instruments
- Series: Automotive, AEC-Q100
- Voltage Dropout (Max): 0.45V @ 300mA
- Package / Case: 6-WDFN Exposed Pad
- Base Part Number: TLV733
- Supplier Device Package: 6-WSON (2x2)
- Current - Output: 300mA
- Current - Quiescent (Iq): 62µA
- Part Status: Active
- Voltage - Input (Max): 5.5V
- Mounting Type: Surface Mount
- Control Features: Enable
- Protection Features: Current Limit, Thermal Shutdown, UVLO
- Voltage - Output (Min/Fixed): 1V
- PSRR: 68dB ~ 28dB (100Hz ~ 100kHz)
- Voltage - Output (Max): -
- Packaging: Cut Tape (CT)
- Output Configuration: Positive
- Number of Regulators: 1
- detail: Linear Voltage Regulator IC 1 Output 300mA 6-WSON (2x2)
