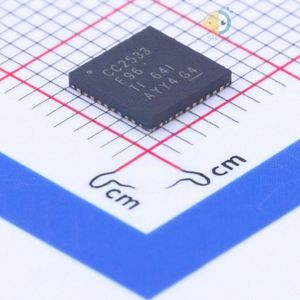

CC2533F96RHAR دیتاشیت

CC2533F96RHAR

مشخصات دیتاشیت

نام دیتاشیت CC2533F96RHAR
حجم فایل 101.024 کیلوبایت
نوع فایل pdf
تعداد صفحات 34

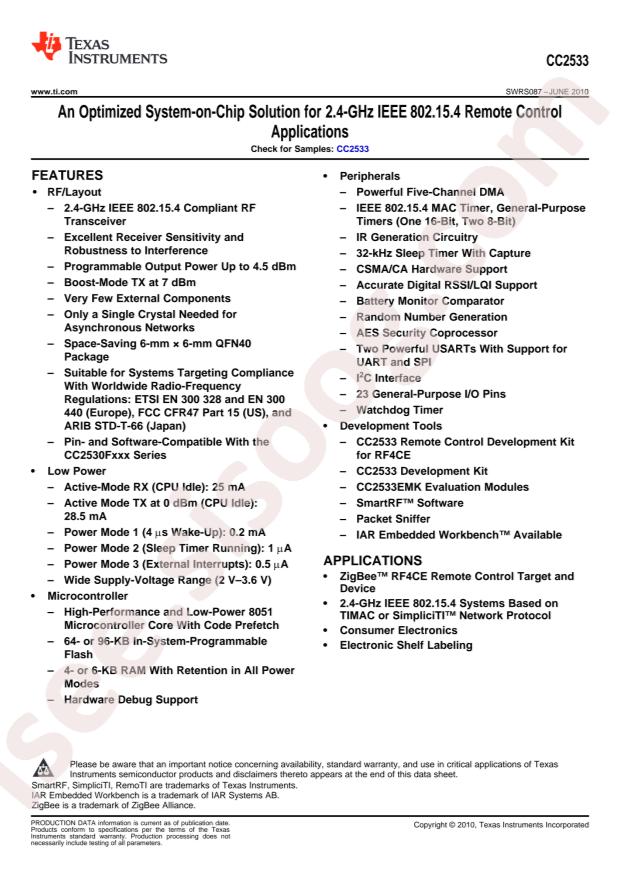

دانلود دیتاشیت CC2533F96RHAR

دانلود دیتاشیت

سایر مستندات

Analog Signal Chain Guide 11 pages

CC2533 34 pages

مشخصات فنی

  • RoHS: true
  • Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
  • Datasheet: Texas Instruments CC2533F96RHAR
  • Package: QFN-40-EP(6x6)
  • Manufacturer: Texas Instruments
  • Voltage - Supply: 2V ~ 3.6V
  • Frequency: 2.4GHz
  • Series: -
  • GPIO: 23
  • Data Rate (Max): 250kbps
  • Power - Output: 4.5dBm
  • Supplier Device Package: 40-VQFN (6x6)
  • Serial Interfaces: I²C, SPI, UART
  • Current - Transmitting: 28.5mA ~ 38.8mA
  • Packaging: Cut Tape (CT)
  • Current - Receiving: 21.6mA ~ 25.1mA
  • Sensitivity: -97dBm
  • Part Status: Active
  • Memory Size: 96kB Flash, 6kB RAM
  • Base Part Number: CC2533
  • Operating Temperature: -40°C ~ 125°C
  • Modulation: -
  • Mounting Type: Surface Mount
  • Type: TxRx + MCU
  • Protocol: -
  • Package / Case: 40-VFQFN Exposed Pad
  • RF Family/Standard: 802.15.4
  • detail: IC RF TxRx + MCU 802.15.4 2.4GHz 40-VFQFN Exposed Pad
