TPS56637RPAR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TPS56637RPAR
|
|
حجم فایل
|
93.6
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
36
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Step-down type
-
Topology:
Step-down
-
Datasheet:
Texas Instruments TPS56637RPAR
-
Output Type:
Adjustable
-
Input Voltage:
4.5V~28V
-
Output Voltage:
0.6V~13V
-
Number of Outputs:
1
-
Switching Frequency:
500kHz
-
Output Current (Max):
6A
-
Operating Temperature:
-40°C~+150°C@(TJ)
-
Synchronous Rectification:
Yes
-

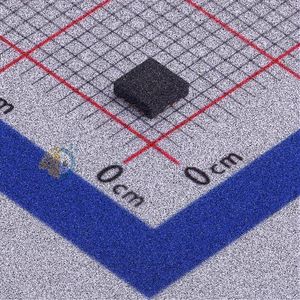

Package:
VQFN-10-HR(3x3)
-
Manufacturer:
Texas Instruments
-
Voltage - Input (Max):
28V
-
Frequency - Switching:
500kHz
-
Packaging:
Cut Tape (CT)
-
Series:
-
-
Output Configuration:
Positive
-
Base Part Number:
TPS566
-
Supplier Device Package:
10-VQFN-HR (3x3)
-
Mounting Type:
Surface Mount
-
Voltage - Output (Max):
13V
-
Synchronous Rectifier:
Yes
-
Package / Case:
10-PowerVFQFN
-
Voltage - Output (Min/Fixed):
0.6V
-
Voltage - Input (Min):
4.5V
-
Part Status:
Active
-
Current - Output:
6A
-
detail:
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 6A 10-PowerVFQFN
