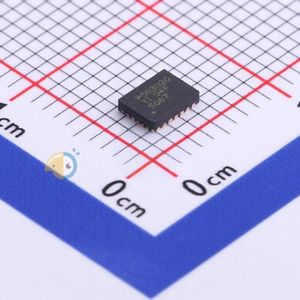

TPS63020DSJT دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TPS63020DSJT
|
|
حجم فایل
|
95.022
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
34
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Datasheet:
Texas Instruments TPS63020DSJT
-
Package:
DFN-14(3x4)
-
Manufacturer:
Texas Instruments
-
Function:
Step-Up/Step-Down
-
Voltage - Input (Max):
5.5V
-
Frequency - Switching:
2.4MHz
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Packaging:
Cut Tape (CT)
-
Series:
-
-
Output Configuration:
Positive
-
Base Part Number:
TPS630
-
Supplier Device Package:
14-VSON (4x3)
-
Mounting Type:
Surface Mount
-
Number of Outputs:
1
-
Voltage - Output (Max):
5.5V
-
Synchronous Rectifier:
Yes
-
Output Type:
Adjustable
-
Package / Case:
14-VFDFN Exposed Pad
-
Topology:
Buck-Boost
-
Voltage - Output (Min/Fixed):
1.2V
-
Voltage - Input (Min):
1.8V
-
Part Status:
Active
-
Current - Output:
3.5A (Switch)
-
detail:
Buck-Boost Switching Regulator IC Positive Adjustable 1.2V 1 Output 3.5A (Switch) 14-VFDFN Exposed Pad
