SN74LVTH162374DGGR دیتاشیت

SN74LVTH162374DGGR

مشخصات دیتاشیت

نام دیتاشیت SN74LVTH162374DGGR
حجم فایل 99.219 کیلوبایت
نوع فایل pdf
تعداد صفحات 19

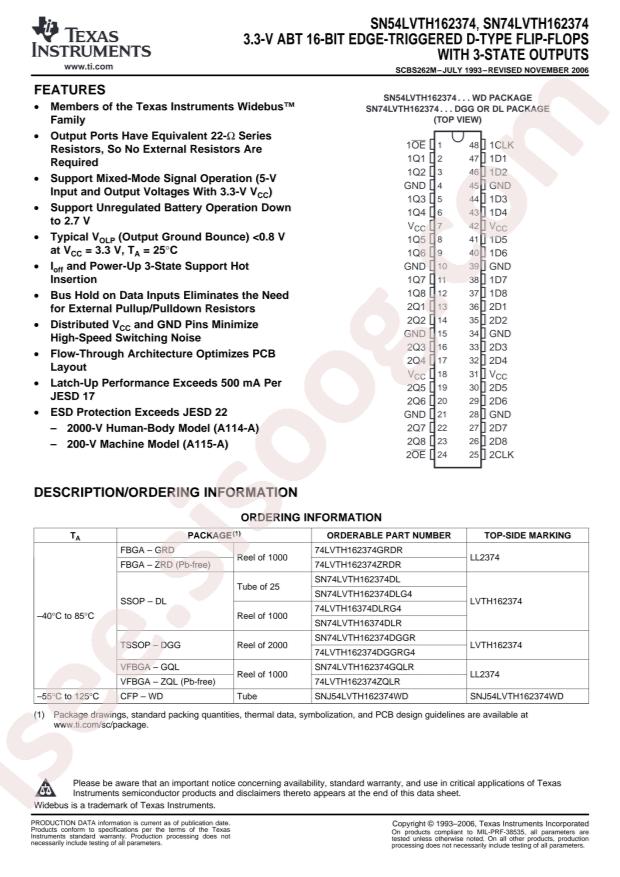

مشاهده دیتاشیت SN74LVTH162374DGGR

دانلود دیتاشیت

سایر مستندات

SN54LVTH162374, SN74LVTH162374 19 pages

مشخصات فنی

  • RoHS: true
  • Type: D-Type
  • Series: 74LVTH
  • Category: Logic ICs/Flip Flops
  • Function: Standard
  • Datasheet: Texas Instruments SN74LVTH162374DGGR
  • Output Type: Tri-State;Non-Inverted
  • Sink Current: 12mA
  • Trigger Type: 上升沿
  • Source Current: 12mA
  • Supply Voltage: 2.7V~3.6V
  • Clock Frequency: 160MHz
  • Input Capacitance: 3pF
  • Quiescent Current (Iq): 190uA
  • Maximum Propagation Delay: 5.3ns@3.3V,50pF
  • Package: TSSOP-48-6.1mm
  • Manufacturer: Texas Instruments
  • Max Propagation Delay @ V, Max CL: 5.3ns @ 3.3V, 50pF
  • Number of Elements: 2
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Package / Case: 48-TFSOP (0.240", 6.10mm Width)
  • Current - Quiescent (Iq): 190µA
  • Base Part Number: SN74LVT
  • Supplier Device Package: 48-TSSOP
  • Number of Bits per Element: 8
  • Packaging: Cut Tape (CT)
  • Current - Output High, Low: 12mA, 12mA
  • Mounting Type: Surface Mount
  • Voltage - Supply: 2.7V ~ 3.6V
  • Part Status: Active
  • detail: Flip Flop 2 Element D-Type 8 Bit Positive Edge 48-TFSOP (0.240", 6.10mm Width)
