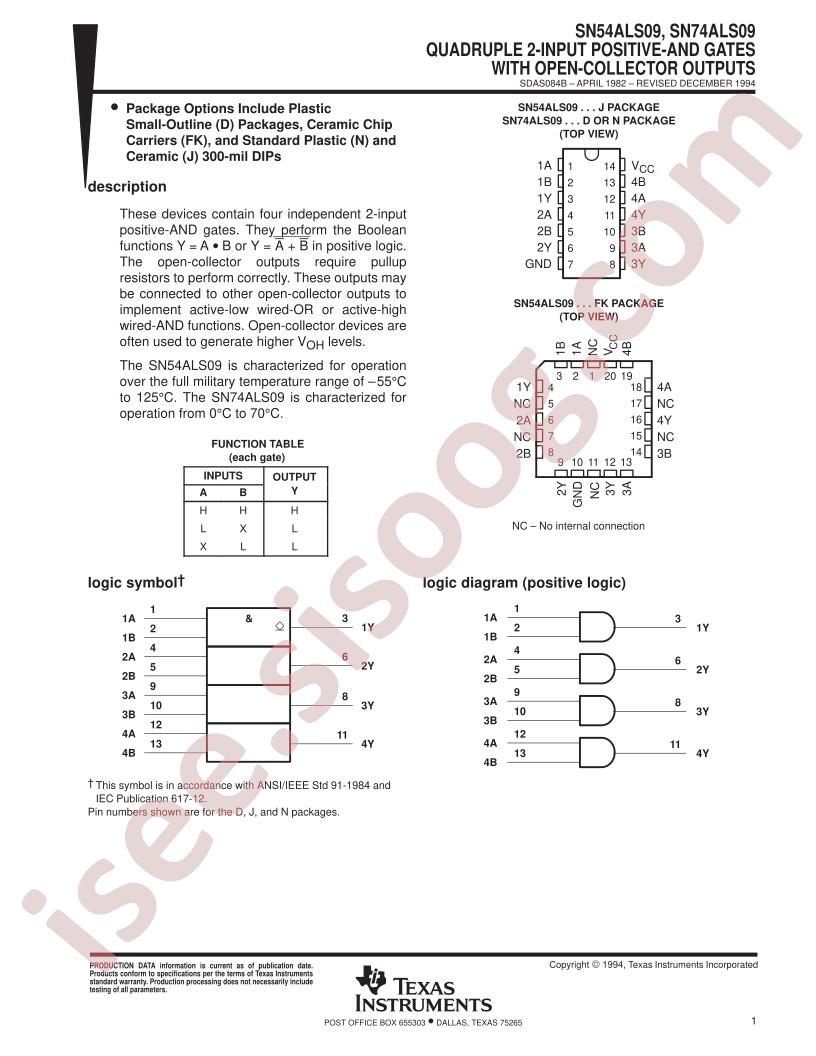

SN54/74LAS09 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
SN54/74LAS09
|
|
حجم فایل
|
846.964
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
15
|
مشخصات فنی
-
RoHS:
true
-
Series:
74ALS
-
Category:
Logic ICs/Gates
-
Datasheet:
Texas Instruments SN74ALS09DR
-
Sink Current:
8mA
-
Supply Voltage:
4.5V~5.5V
-
Logic Gate Type:
And
-
Number of Channels:
4
-
Low Level Range (VIL):
0.8V
-
Operating Temperature:
0°C~+70°C
-
High Level Range (VIH):
2V
-
Propagation Delay Time:
54ns@5V,50pF
-
Package:
SOP-14
-
Manufacturer:
Texas Instruments
-
Voltage - Supply:
4.5V ~ 5.5V
-
Logic Level - Low:
0.8V
-
Number of Circuits:
4
-
Package / Case:
14-SOIC (0.154", 3.90mm Width)
-
Max Propagation Delay @ V, Max CL:
54ns @ 5V, 50pF
-
Number of Inputs:
2
-
Base Part Number:
SN74ALS0
-
Mounting Type:
Surface Mount
-
Features:
Open Collector
-
Supplier Device Package:
14-SOIC
-
Logic Type:
AND Gate
-
Packaging:
Cut Tape (CT)
-
Current - Output High, Low:
-, 8mA
-
Part Status:
Active
-
Logic Level - High:
2V
-
detail:
AND Gate IC 4 Channel Open Collector 14-SOIC
