دیتاشیت TPS2543RTET
مشخصات دیتاشیت
| نام دیتاشیت |
TPS2543RTET
|
| حجم فایل |
109.548
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
37
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Power Distribution Switches
-

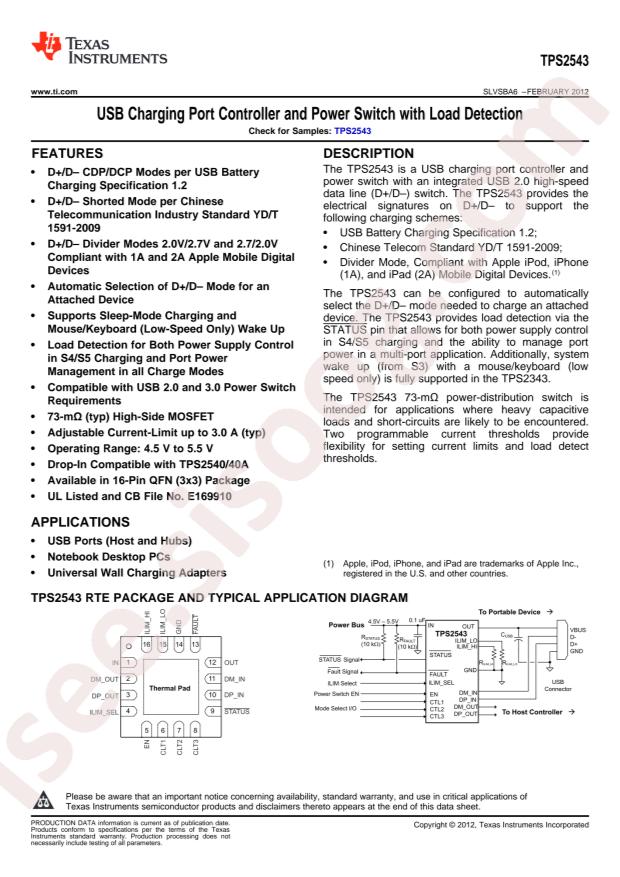

Datasheet:
Texas Instruments TPS2543RTET
-
Input Voltage:
4.5V~5.5V
-
Output Current:
3A
-
Number of Outputs:
1
-
Resistor On-State:
73mΩ
-
Operating Temperature -:
-40°C~+125°C
-
Package:
QFN-16-EP(3x3)
-
Manufacturer:
Texas Instruments
-
Input Type:
Non-Inverting
-
Fault Protection:
Current Limiting (Adjustable), Over Temperature, UVLO
-
Interface:
On/Off
-
Features:
-
-
Series:
-
-
Current - Output (Max):
3A
-
Package / Case:
16-WFQFN Exposed Pad
-
Packaging:
Cut Tape (CT)
-
Ratio - Input:Output:
1:1
-
Part Status:
Active
-
Rds On (Typ):
73mOhm
-
Base Part Number:
TPS254
-
Output Type:
N-Channel
-
Operating Temperature:
-40°C ~ 125°C (TJ)
-
Voltage - Load:
4.5V ~ 5.5V
-
Output Configuration:
High Side
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
16-WQFN (3x3)
-
Switch Type:
USB Switch
-
Voltage - Supply (Vcc/Vdd):
Not Required
-
detail:
Power Switch/Driver 1:1 N-Channel 3A 16-WQFN (3x3)
