SN74HC112N دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت SN74HC112N	دانلود دیتاشیت

RoHS: true
Type: JK-Type
Series: 74HC
Category: Logic ICs/Flip Flops
Function: 置位和复位

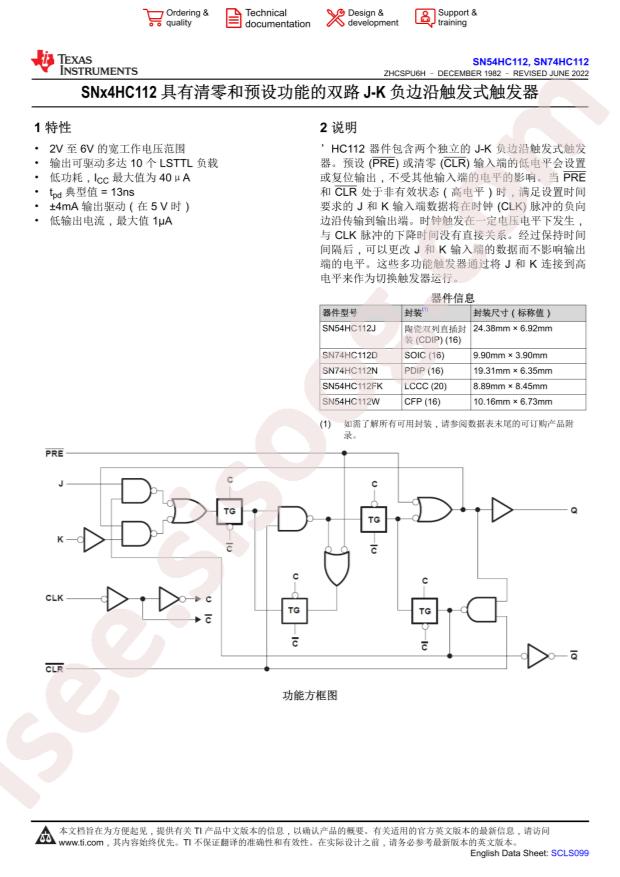

Datasheet: Texas Instruments SN74HC112N
Output Type: 互补型
Sink Current: 5.2mA
Trigger Type: 下降沿
Source Current: 5.2mA
Supply Voltage: 2V~6V
Clock Frequency: 60MHz
Input Capacitance: 3pF
Number of Elements: 2
Operating Temperature: -40°C~+85°C
Quiescent Current (Iq): 4uA
Maximum Propagation Delay: 13ns@6V,50pF
Number of Bits per Element: 1
Package: PDIP-16
Manufacturer: Texas Instruments
Max Propagation Delay @ V, Max CL: 13ns @ 6V, 50pF
Package / Case: 16-DIP (0.300", 7.62mm)
Current - Quiescent (Iq): 4µA
Base Part Number: SN74HC1
Supplier Device Package: 16-PDIP
Packaging: Tube
Current - Output High, Low: 5.2mA, 5.2mA
Mounting Type: Through Hole
Voltage - Supply: 2V ~ 6V
Part Status: Active
detail: Flip Flop 2 Element JK Type 1 Bit Negative Edge 16-DIP (0.300", 7.62mm)
