SN74HCT540N دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت SN74HCT540N	دانلود دیتاشیت

RoHS: true
Category: Logic ICs/Buffer/Driver/Transceiver

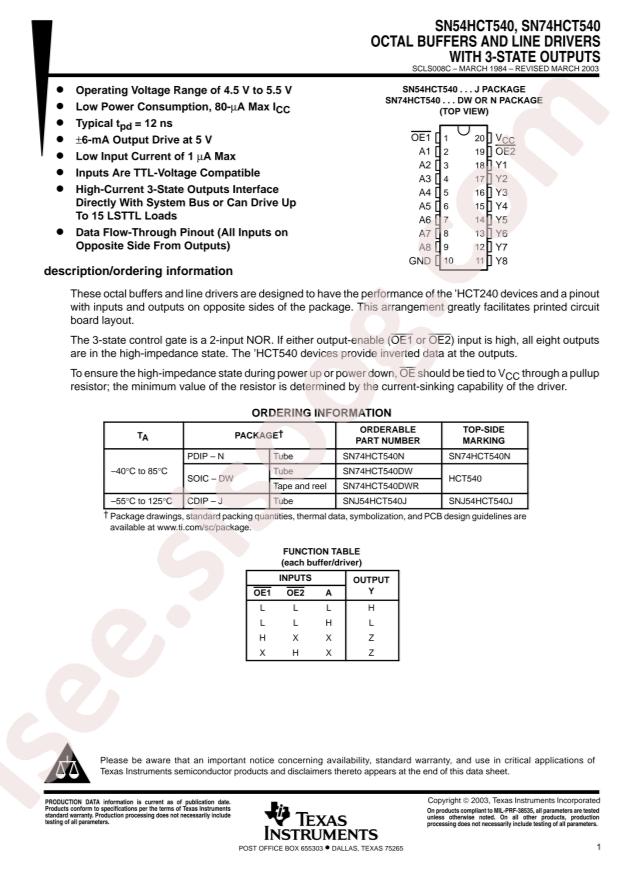

Datasheet: Texas Instruments SN74HCT540N
Input type: -
output type: Tri-State
Logic Family: 74HCT
Sink Current: 6mA
Source Current: 6mA
Supply Voltage: 4.5V~5.5V
Number of Elements: 1
Operating Temperature: -40°C~+85°C
Number of Bits per Element: 8
Package: PDIP-20
Manufacturer: Texas Instruments
Voltage - Supply: 4.5V ~ 5.5V
Package / Case: 20-DIP (0.300", 7.62mm)
Series: 74HCT
Base Part Number: SN74HCT
Supplier Device Package: 20-PDIP
Mounting Type: Through Hole
Logic Type: Buffer, Inverting
Packaging: Tube
Current - Output High, Low: 6mA, 6mA
Part Status: Active
detail: Buffer, Inverting 1 Element 8 Bit per Element 3-State Output 20-PDIP
