SN74AS808BN دیتاشیت

SN74AS808BN

مشخصات دیتاشیت

نام دیتاشیت SN74AS808BN
حجم فایل 71.829 کیلوبایت
نوع فایل pdf
تعداد صفحات 13

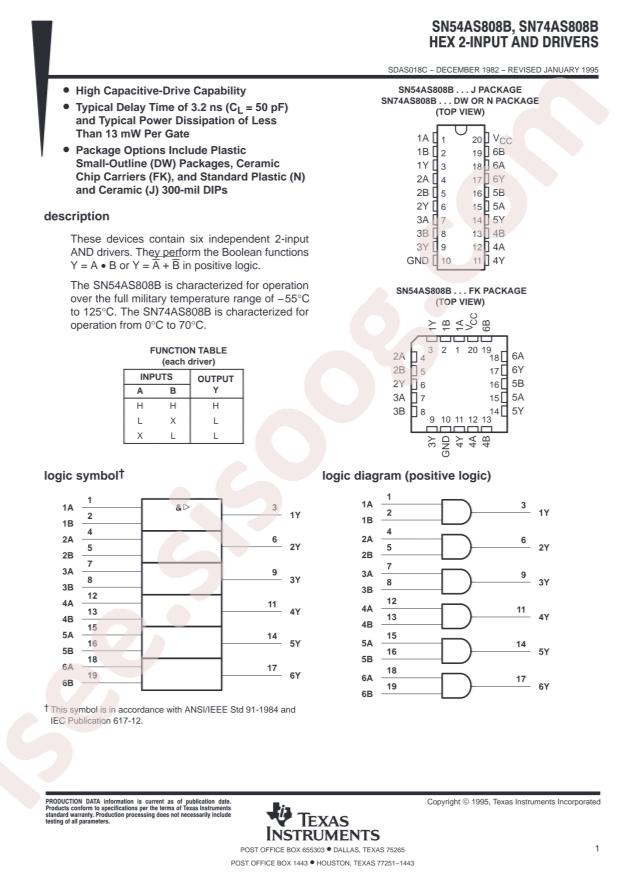

مشاهده دیتاشیت SN74AS808BN

دانلود دیتاشیت

سایر مستندات

SN54AS808B, SN74AS808B 13 pages

مشخصات فنی

  • RoHS: true
  • Series: 74AS
  • Category: Logic ICs/Gates
  • Datasheet: Texas Instruments SN74AS808BN
  • Sink Current: 48mA
  • Source Current: 48mA
  • Supply Voltage: 4.5V~5.5V
  • Logic Gate Type: And
  • Number of Channels: 6
  • Low Level Range (VIL): 0.8V
  • Operating Temperature: 0°C~+70°C
  • High Level Range (VIH): 2V
  • Propagation Delay Time: 6ns@5V,50pF
  • Package: PDIP-20
  • Manufacturer: Texas Instruments
  • Voltage - Supply: 4.5V ~ 5.5V
  • Logic Level - Low: 0.8V
  • Number of Circuits: 6
  • Package / Case: 20-DIP (0.300", 7.62mm)
  • Max Propagation Delay @ V, Max CL: 6ns @ 5V, 50pF
  • Number of Inputs: 2
  • Base Part Number: SN74AS8
  • Mounting Type: Through Hole
  • Features: -
  • Supplier Device Package: 20-PDIP
  • Logic Type: AND Gate
  • Packaging: Tube
  • Current - Output High, Low: 48mA, 48mA
  • Part Status: Active
  • Logic Level - High: 2V
  • detail: AND Gate IC 6 Channel 20-PDIP
