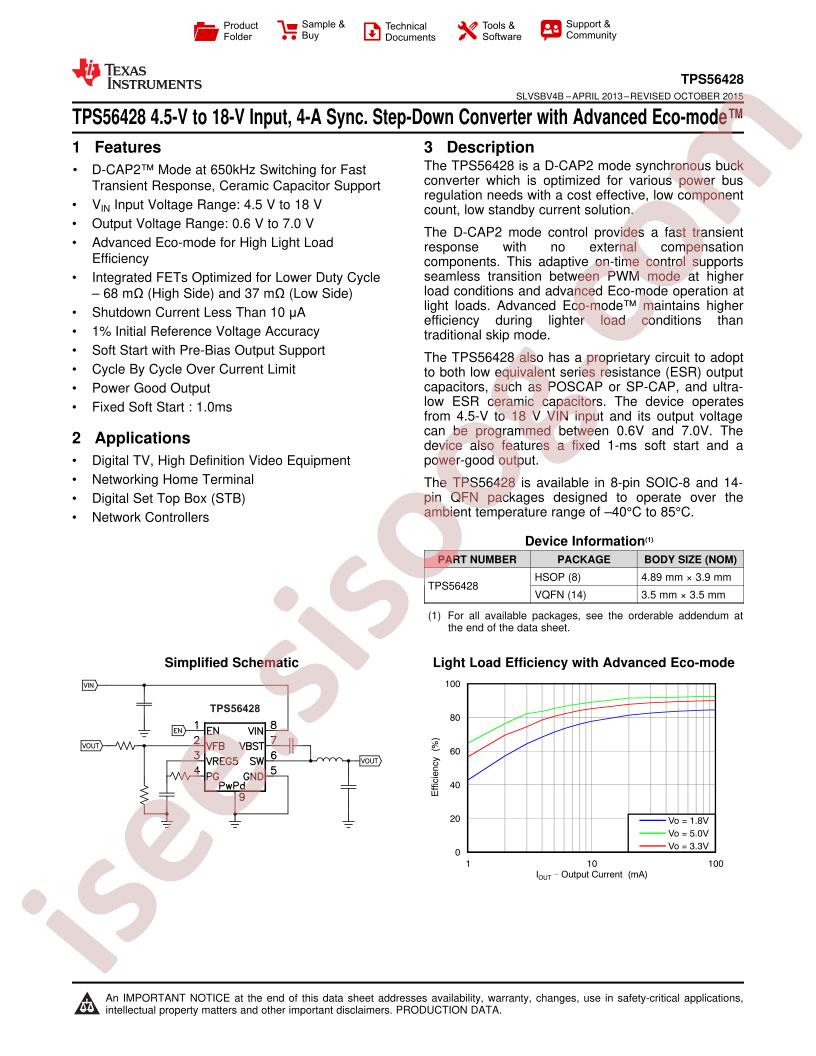

TPS56428 Datasheet
Datasheet specifications
| Datasheet's name | TPS56428 |
|---|---|
| File size | 1850.016 KB |
| File type | |
| Number of pages | 31 |
Download Datasheet TPS56428 |
Download Datasheet |
|---|
Other documentations

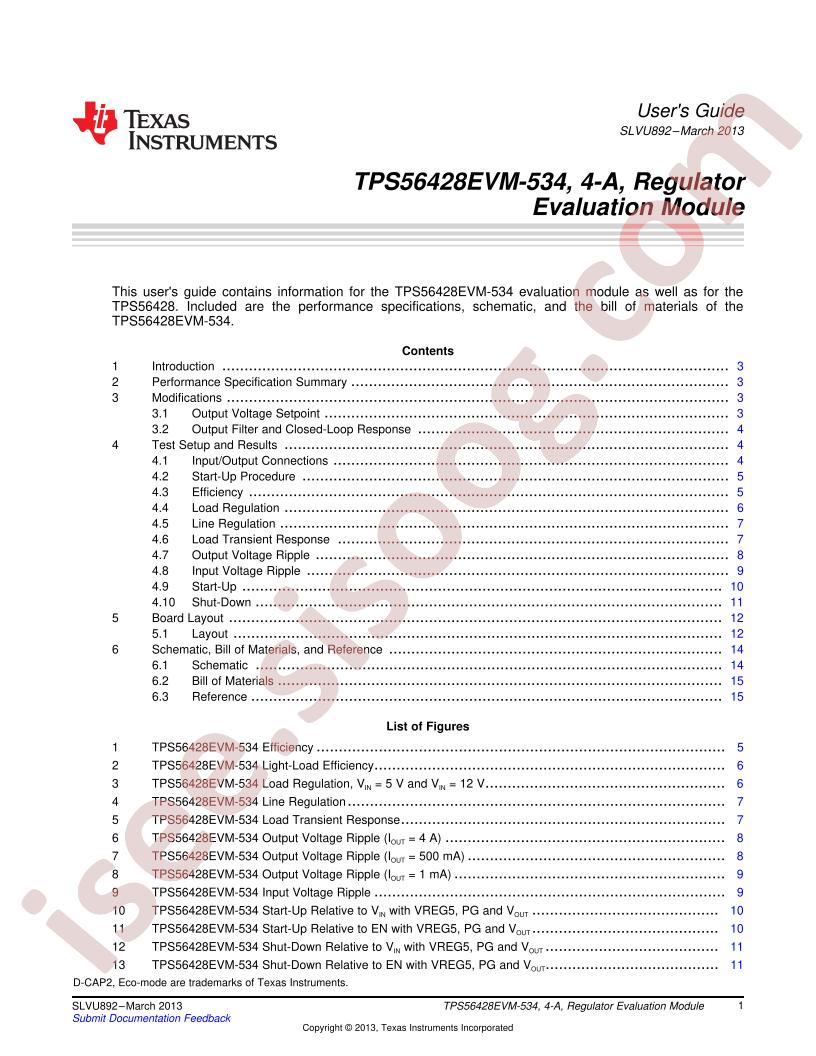

TPS56428EVM-534 User Guide 20 pages
Technical specifications
- Regulator Topology: Buck
- Base Part Number: TPS564
- Outputs and Type: 1, Non-Isolated
- Series: D-CAP2™, Eco-Mode™
- Board Type: Fully Populated
- Manufacturer: Texas Instruments
- Utilized IC / Part: TPS56428
- Voltage - Input: 4.5V ~ 18V
- Main Purpose: DC/DC, Step Down
- Voltage - Output: 1.2V
- Supplied Contents: Board(s)
- Frequency - Switching: 650kHz
- Part Status: Active
- Current - Output: 4A
- detail: TPS56428 D-CAP2™, Eco-Mode™ DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
