TPS54060 Datasheet
Datasheet specifications
| Datasheet's name | TPS54060 |
|---|---|
| File size | 3730.466 KB |
| File type | |
| Number of pages | 56 |
Download Datasheet TPS54060 |
Download Datasheet |
|---|
Other documentations

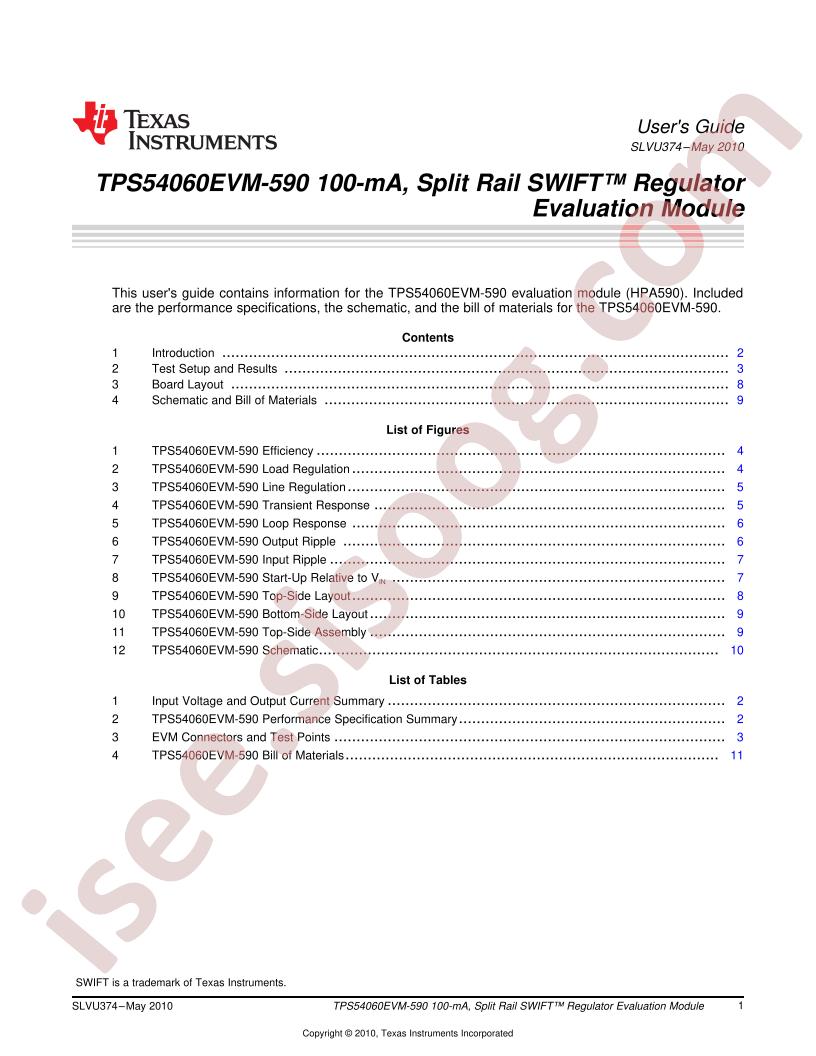

TPS54060EVM-590 User Guide 13 pages
Technical specifications
- Regulator Topology: Buck
- Base Part Number: TPS540
- Outputs and Type: 2, Non-Isolated
- Series: SWIFT™
- Board Type: Fully Populated
- Manufacturer: Texas Instruments
- Utilized IC / Part: TPS54060
- Voltage - Input: 18V ~ 30V
- Main Purpose: DC/DC, Positive and Negative
- Voltage - Output: ±18V
- Supplied Contents: Board(s)
- Frequency - Switching: 300kHz
- Part Status: Active
- Current - Output: 100mA
- detail: TPS54060 SWIFT™ DC/DC, Positive and Negative 2, Non-Isolated Outputs Evaluation Board
