TPS56628 Datasheet
Datasheet specifications
| Datasheet's name | TPS56628 |
|---|---|
| File size | 1680.453 KB |
| File type | |
| Number of pages | 25 |
Download Datasheet TPS56628 |
Download Datasheet |
|---|
Other documentations

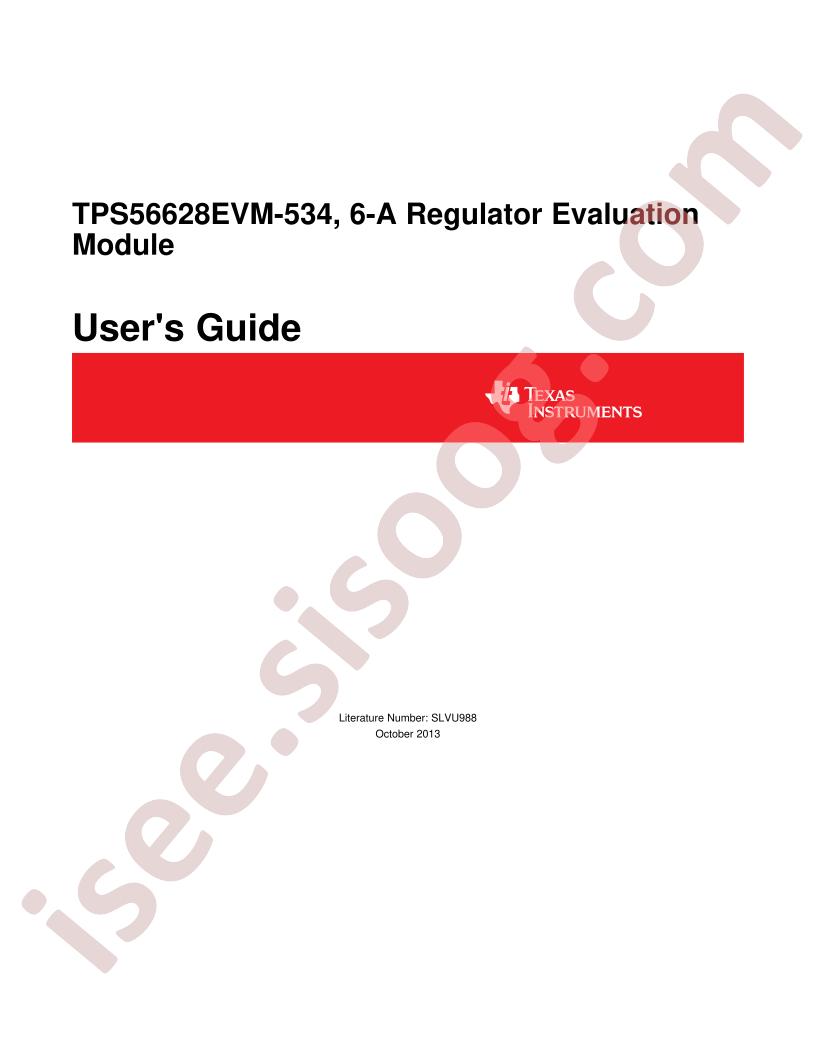

TPS56628EVM-534 User Guide 22 pages
TPS563900 Datasheet 38 pages
Technical specifications
- Regulator Topology: Buck
- Base Part Number: TPS566
- Outputs and Type: 1, Non-Isolated
- Series: D-CAP2™, Eco-Mode™
- Board Type: Fully Populated
- Manufacturer: Texas Instruments
- Utilized IC / Part: TPS56628
- Voltage - Input: 4.5V ~ 18V
- Main Purpose: DC/DC, Step Down
- Voltage - Output: 1.05V
- Supplied Contents: Board(s)
- Frequency - Switching: 650kHz
- Part Status: Active
- Current - Output: 6A
- detail: TPS56628 D-CAP2™, Eco-Mode™ DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
