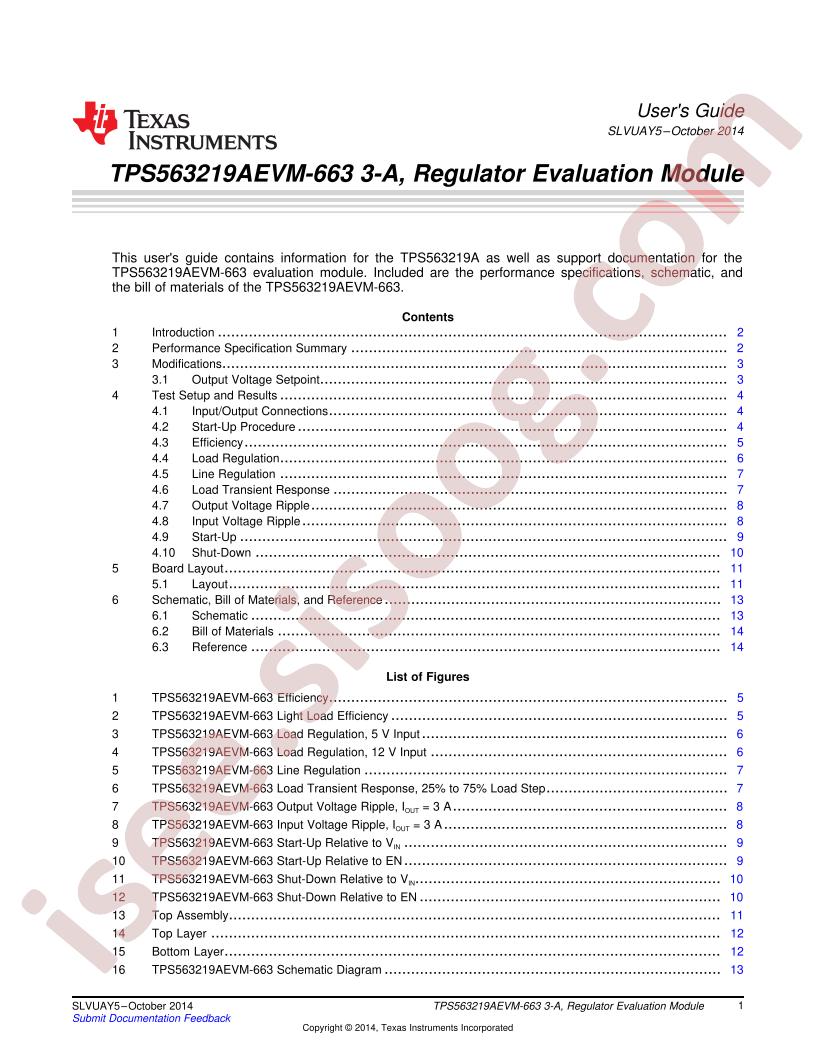

TPS563219AEVM-663 User Guide Datasheet
Datasheet specifications
| Datasheet's name | TPS563219AEVM-663 User Guide |
|---|---|
| File size | 296.658 KB |
| File type | |
| Number of pages | 15 |
Download Datasheet TPS563219AEVM-663 User Guide |
Download Datasheet |
|---|
Other documentations
TPS562219A, TPS563219A Datasheet 30 pages
Technical specifications
- Regulator Topology: Buck
- Base Part Number: TPS563
- Outputs and Type: 1, Non-Isolated
- Series: D-CAP2™
- Board Type: Fully Populated
- Manufacturer: Texas Instruments
- Utilized IC / Part: TPS563219A
- Voltage - Input: 4.5V ~ 17V
- Main Purpose: DC/DC, Step Down
- Voltage - Output: 1.05V
- Supplied Contents: Board(s)
- Frequency - Switching: 650kHz
- Part Status: Active
- Current - Output: 3A
- detail: TPS563219A D-CAP2™ DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
