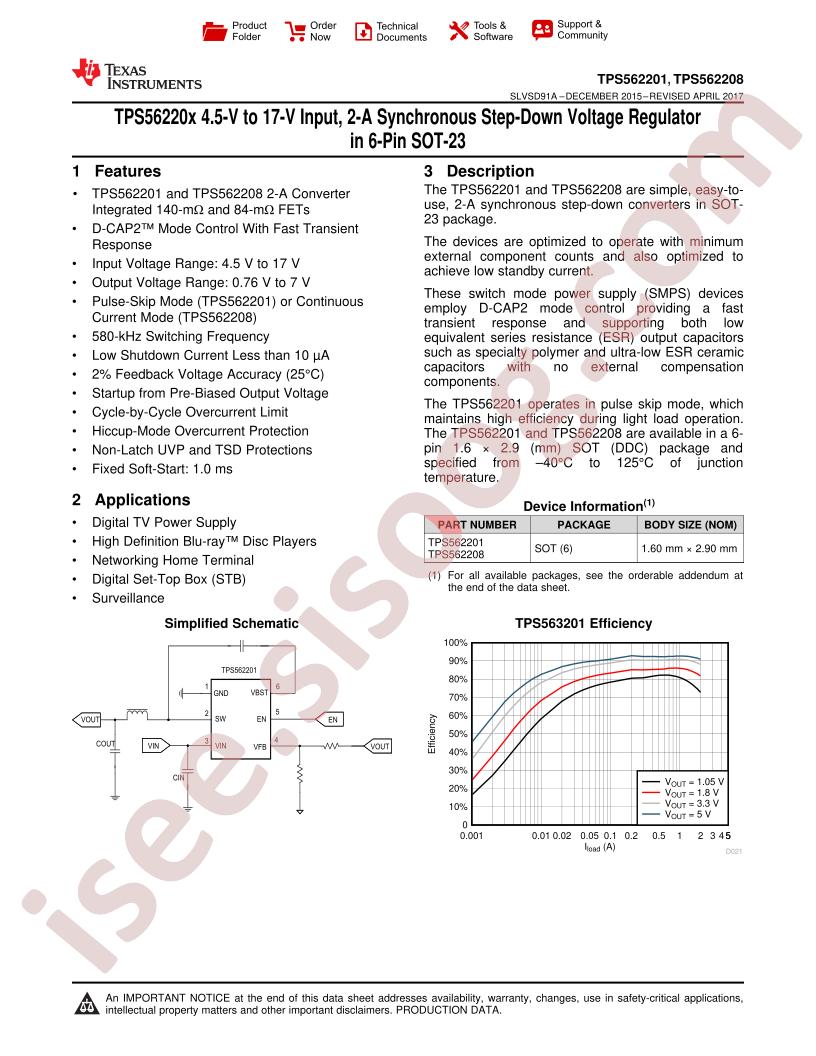

- TPS562201, TPS562208 Datasheet
TPS562201, TPS562208 Datasheet Datasheet
Datasheet specifications
| Datasheet's name | TPS562201, TPS562208 Datasheet |
|---|---|
| File size | 1559.986 KB |
| File type | |
| Number of pages | 26 |
Download Datasheet TPS562201, TPS562208 Datasheet |
Download Datasheet |
|---|
Other documentations

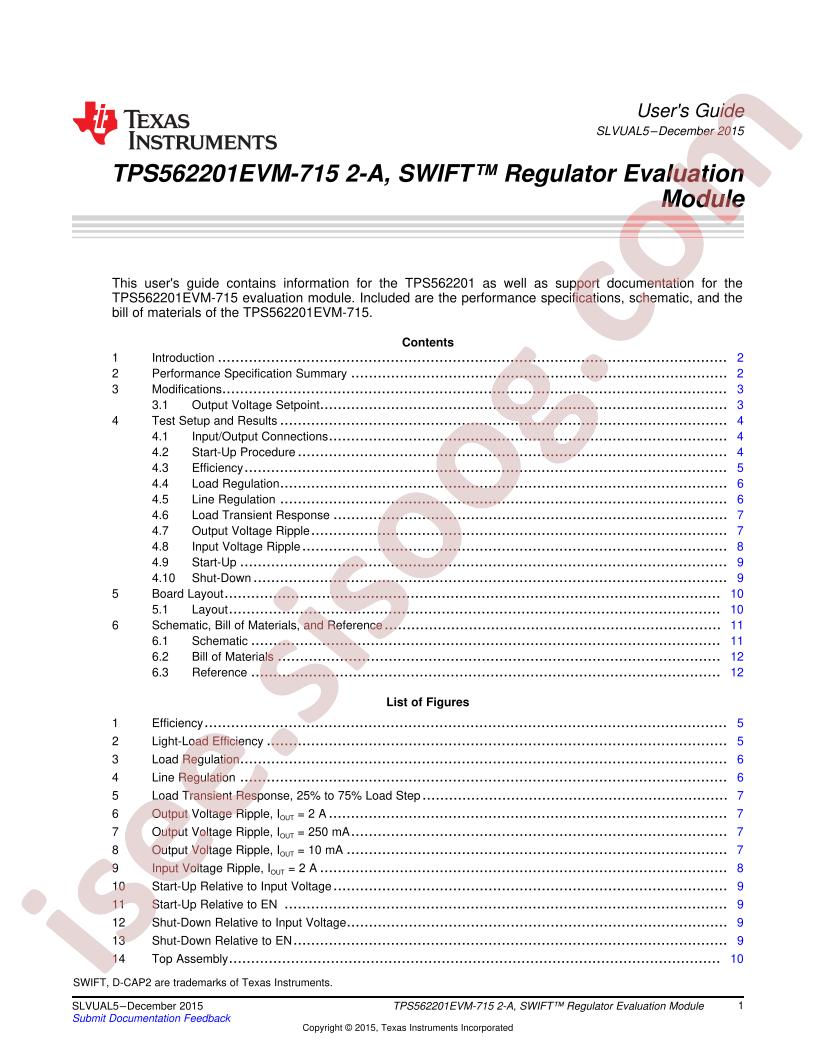

TPS562201EVM-715 User Guide 17 pages
Technical specifications
- Regulator Topology: Buck
- Base Part Number: TPS562
- Outputs and Type: 1, Non-Isolated
- Series: D-CAP2™, SWIFT™
- Board Type: Fully Populated
- Manufacturer: Texas Instruments
- Utilized IC / Part: TPS562201
- Voltage - Input: 4.5V ~ 17V
- Main Purpose: DC/DC, Step Down
- Voltage - Output: 1.05V
- Supplied Contents: Board(s)
- Frequency - Switching: 580kHz
- Part Status: Active
- Current - Output: 2A
- detail: TPS562201 D-CAP2™, SWIFT™ DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
